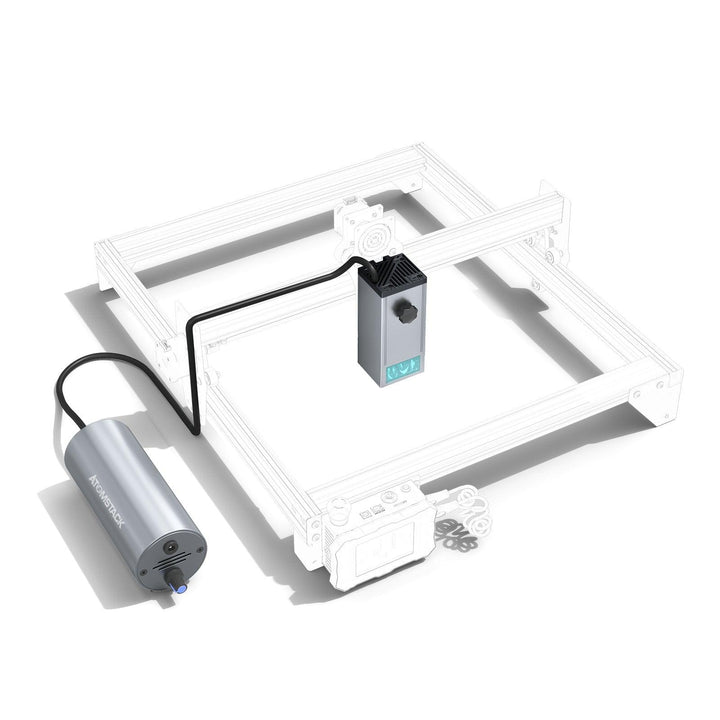

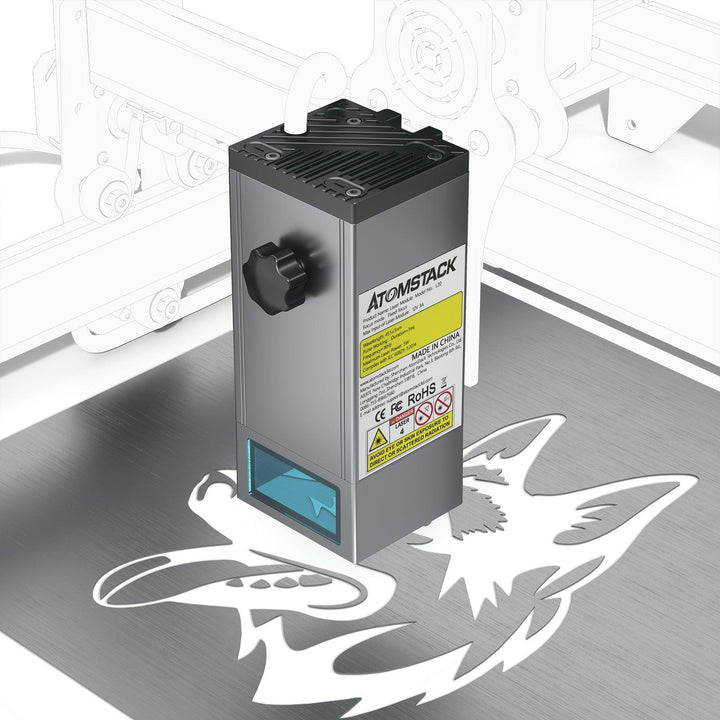

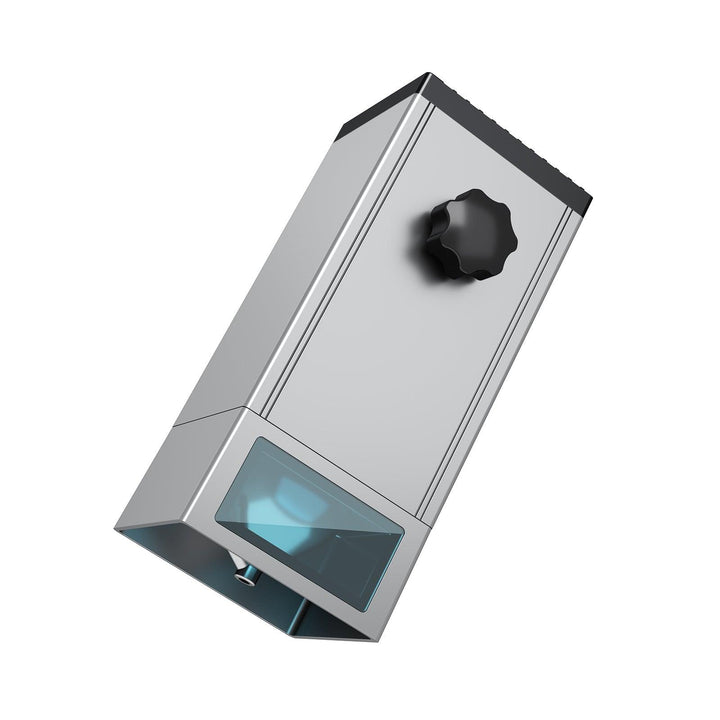

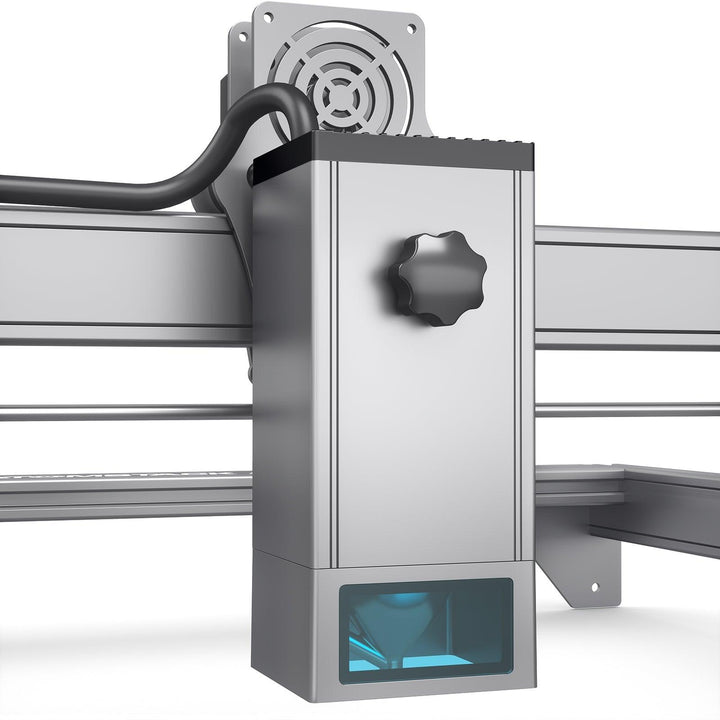

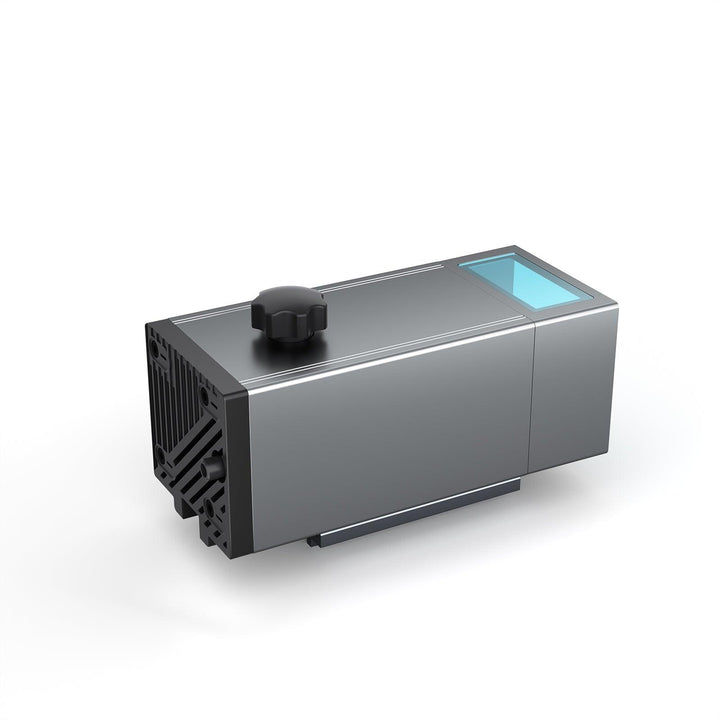

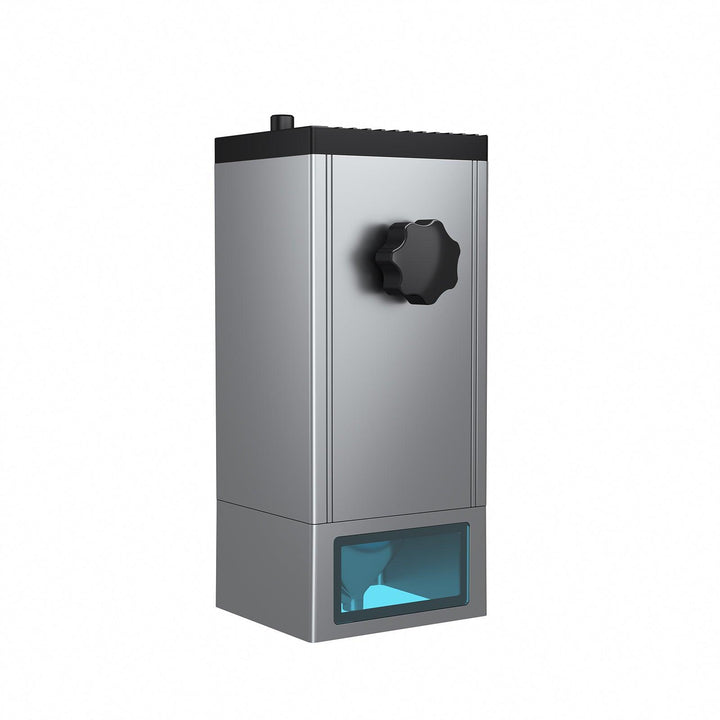

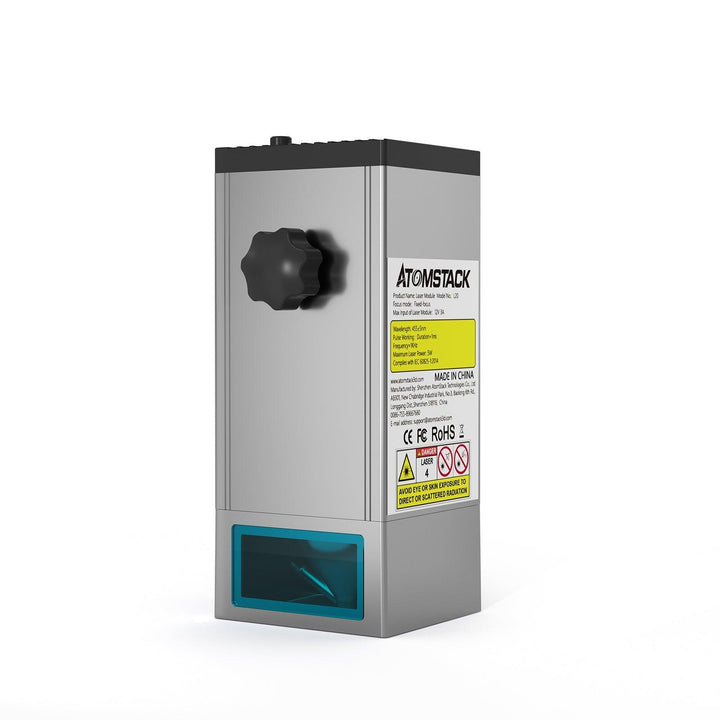

Atomstack M100 130W Laser Module with Air Assist System

The new 20W laser module you've been waiting for with the Atomstack X20 Pro is finally here. This time, it will be available for all frame-based Atomstack models.

Atomstack M100 fits the following models:

X7 Pro, X7 40W
A10 Pro, S10 Pro
A5 20W, A5 30W, A5 M30, A5 Pro, A5 M40, A5 Pro+, A5 M50, A5 M50 Pro

Features:

1. Equipped with air-assisted system, which is extremely helpful for cutting and engraving.

2. It works on all Atomstack frame-mounted models, just replace your old laser module.

3. Made of aluminum, strong and durable.

4. The laser head is equipped with a goggle piece that protects the user's eyes while preventing pets from grabbing the laser dot.

5. Upgraded high quality fixed-focus laser, no need to focus.

6. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

7. Engraving speed is 200% higher than other 10W lasers.

8. The laser sintering temperature is 2400 degrees, the effect of engraving metal is better.

9. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.

Specification:

Brand: Atomstack
Model: M100
Machine Power: 130W
Laser Power: 20W
Product Material: Aluminum 6061 Anode
Housing Size: 140*65*60mm
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Lightspot Size: 0.08*0.1mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: -40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 715g

Details:

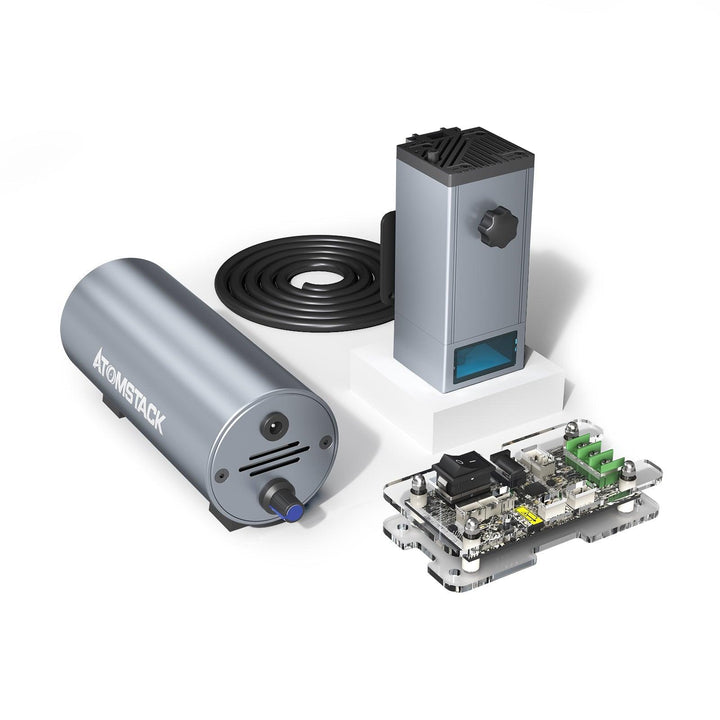

Package Included:

1* M100 Laser Module
1* PCB Circuit Board
1* Compatible Plate（5W series and 10W series use different adapter boards, please pay attention to the distinction）
1* Fixed Focus Plate
1* Connection Line
1* Wrench
6* Screws
1* Power Supply
1* F30 Air assist kit
