Atomstack Maker L1 Z-axis Adjuster for Laser Module Height Adjustment
✅Precise focus adjustment by rotating the button
✅All-metal construction, stable and precise
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days
Shipping Policy > -
International Express:
3-5 Working Days -
Liner Logistic:
7-10 Working Days
Note: Customs duties will be incurred if your order is shipped from China.
Frequently Bought Together
Description:

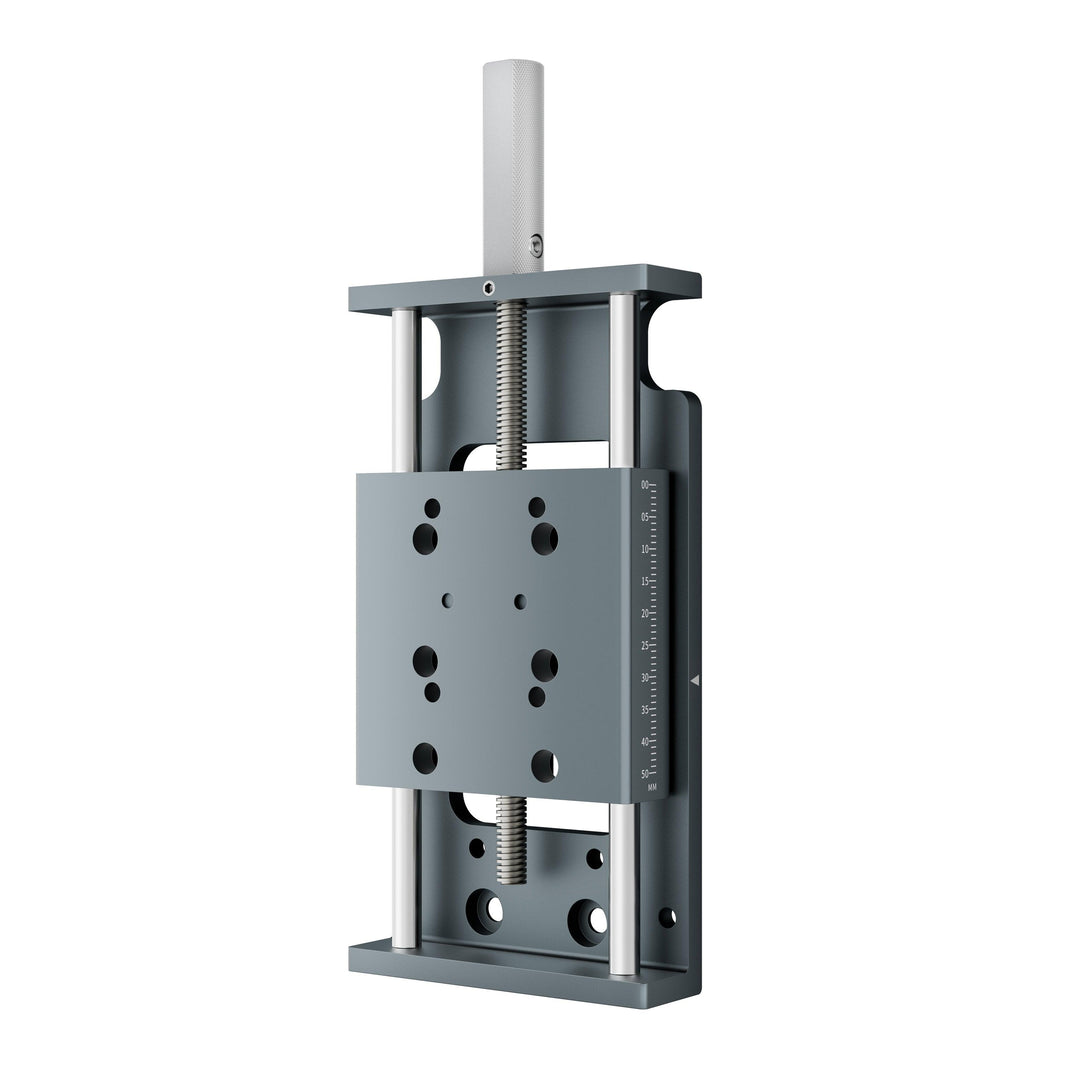

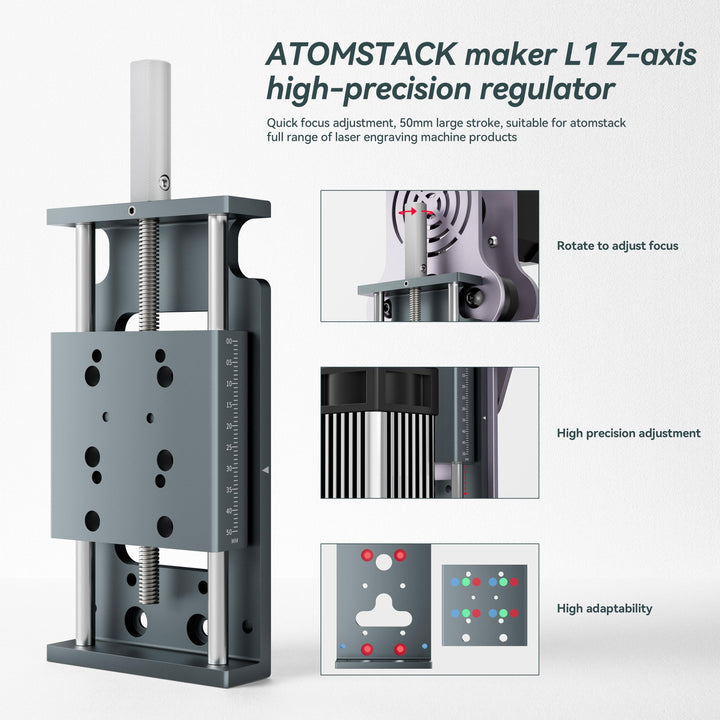

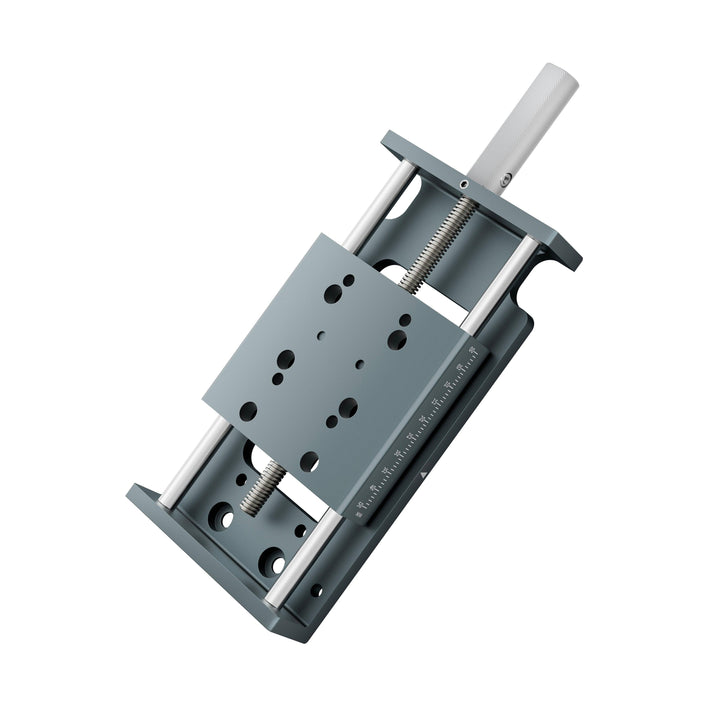

1. Precise focus adjustment: Atomstack Maker L1 Z-axis sliding lift mechanism is suitable for all Atomstack laser engraver models.

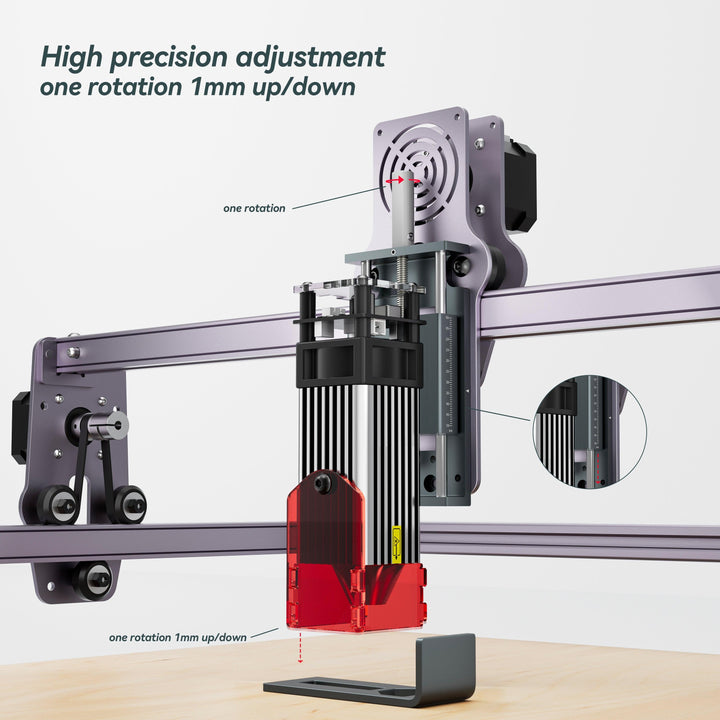

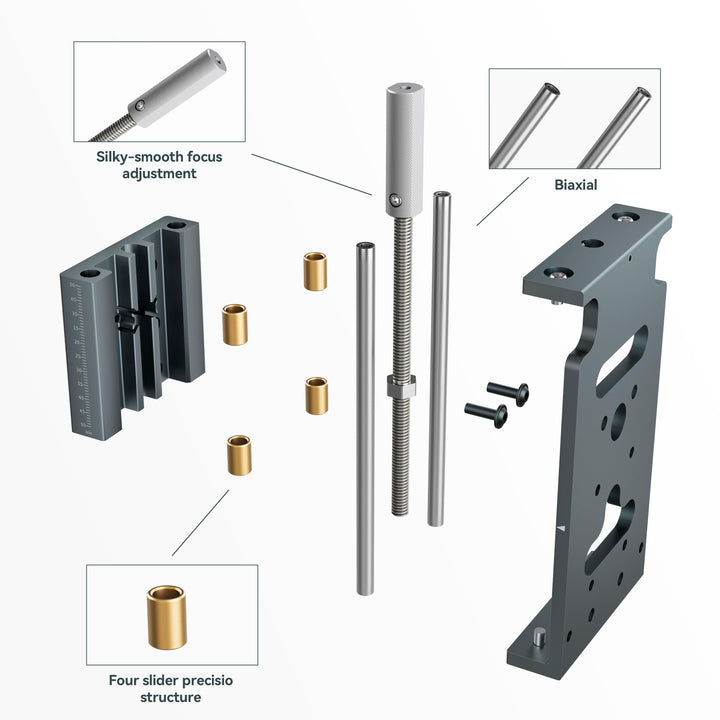

2. Precision structure: Double optical axis and four slider precision structure help precisely control the height, rise / fall 1mm per rotation.

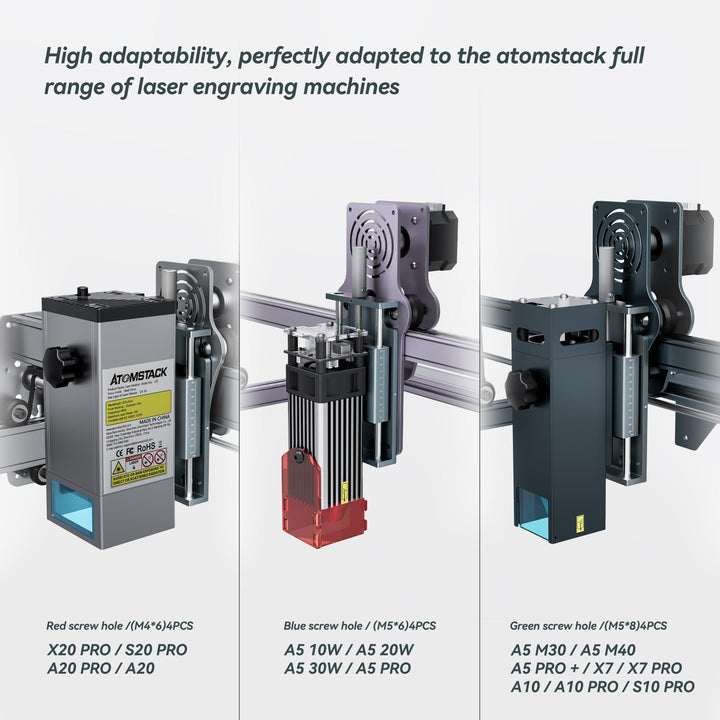

3. High adaptability: Atomstack L1 Z-axis adjuster is adaptable to the whole series of Atomstack laser engraving machine, with a height adjustment range of 50 mm.
4. Easy to operate: 35*Φ10mm large size knob handle, easy to rotate.
5. Lightweight: With a size of 150 * 60 * 17mm, it can be installed on the machine with a stable center of gravity, and no shakin
Specification:
|
Brand |
Atomstack Maker |
|
Model |
L1 |
|
Material |
Metal |
|
Product Size |
150*60*17mm |
|
Slide stroke |
50mm |
|
Adaptable Laser Size（Width） |
33mm、40mm、51mm and 60mm |
|
Working Mode |
Manual adjustment |
Suitable for all Atomstack models:
X30 Pro, A30 Pro, S30 Pro
X20 Pro, A20 Pro, S20 Pro
X7 Pro, A10 Pro, S10 Pro
X7, A5 Pro+, A5 Pro, A5 M40, A5 M50, A5 M50 Pro
A5 M30, A5 30W, A5 20W, A5 10W
P9 M50, P9 M40, P7 M40, P7 M30
Note: P9 M50, P9 M40, P7 M40, P7 M30 are not compatible
