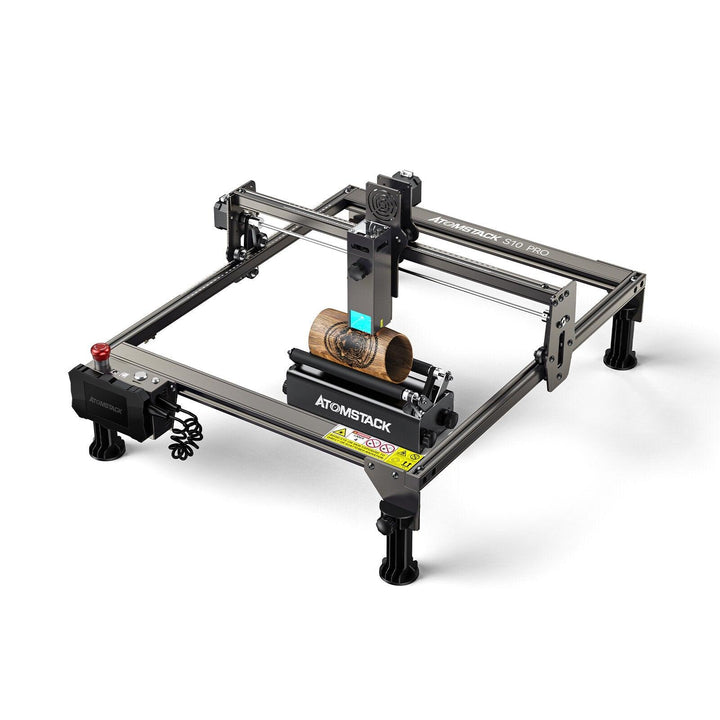

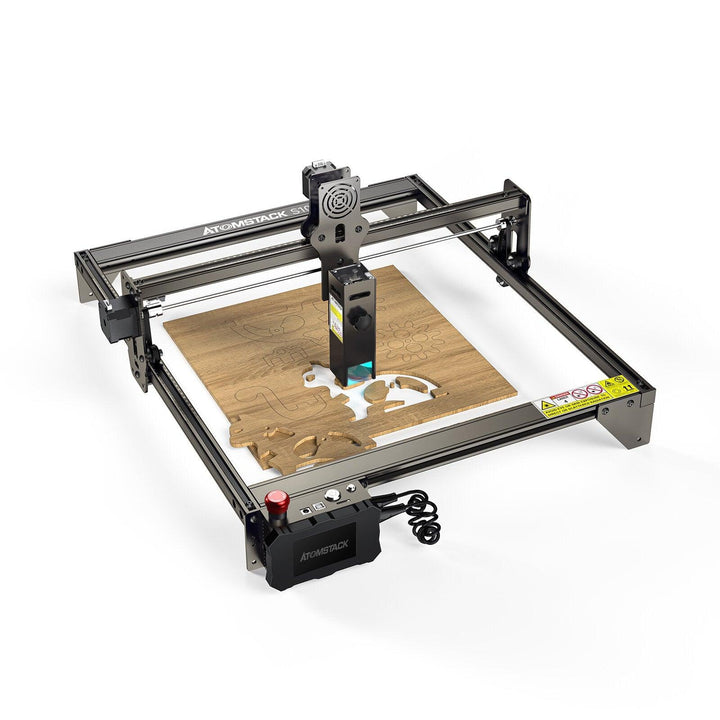

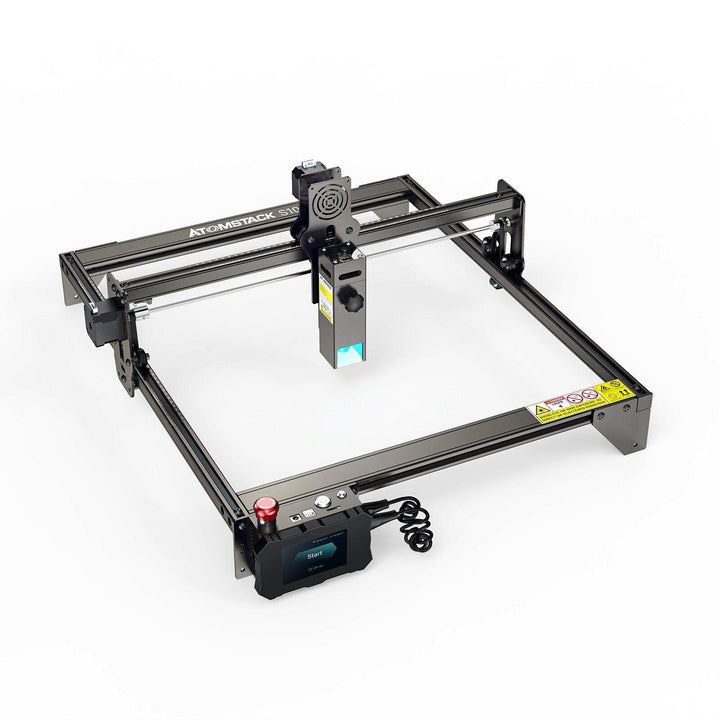

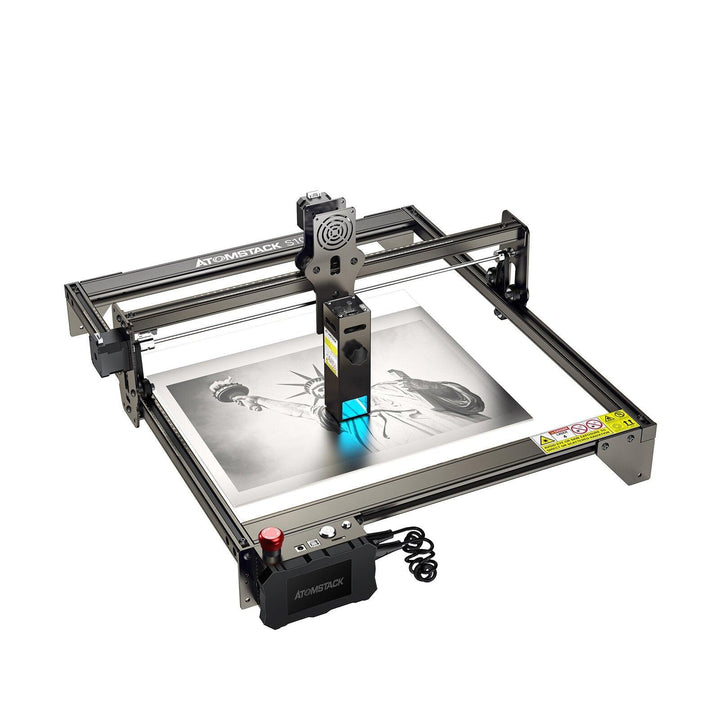

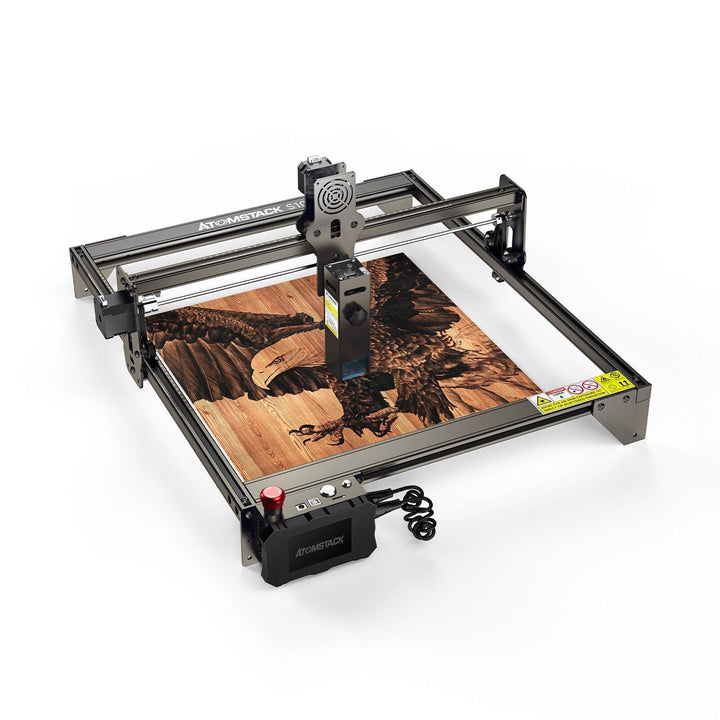

Atomstack S10 PRO 50W Laser Engraver

Main Features:

- Ultra-fine compression spot 0.06*0.06mm
- 3.5 inch Touch Screen & Offline Working
- 32-Bit Chipset & Quick engraving
- 10W Dual Laser Power Output
- Supports 850*410mm Extension kit
- Supports external air assist

Product Information:

Model: S10 PRO
Working area: 410*400mm
Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Power: 50W
Laser Output Power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system; LightBurn, supports Windows/Mac OS/Linux
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE, FCC, RoHS, FDA, PSE

S10 Pro PACKAGE:

1 × Mounting screw
1× Tool kit
4× Foot pad foam
1× Film
3× Acrylic sheet
3 × Wood chips
10× Wire tie
1× Desiccant
1× Brush
1× Clean cloth
1× Card reader
1× TF card
1× Power adapter
1× Instruction
1× Data line
1× Touch screen components
1× HDMI cable
1× Laser module
1× Cutting pad
1× X axis assembly
1× Y axis left profile
1× Y axis right profile
1× Profile on the base
1× Under the base profile
3× Foot bracket
