The Most Powerful 40W Laser Engraving and Cutting Machine
1. New filter eye protection acrylic design: The filter acrylic protective cover plays a good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch the laser engraving. Reduce your goggle expense and the inconvenience of wearing goggles.
2. Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, Win 11 and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6. Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5-5.5W, and the laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 15mm thick wooden boards, 15mm black acrylic; can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of a 100W CO₂ laser engraving machine.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New type laser with knob: It is more convenient and quick to adjust the height of the laser.
9. Support offline engraving: configure the terminal control panel, support offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
10. The laser sintering temperature is up to 800~850℃
11. Emergency stop button: If an unexpected situation occurs, stop the machine at any time, making the engraving safer
12. Stopper: Yes
13. Reset switch: Yes
14. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

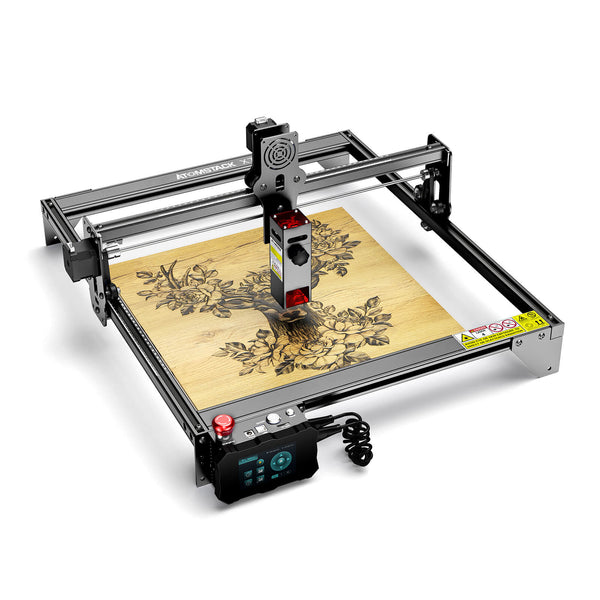

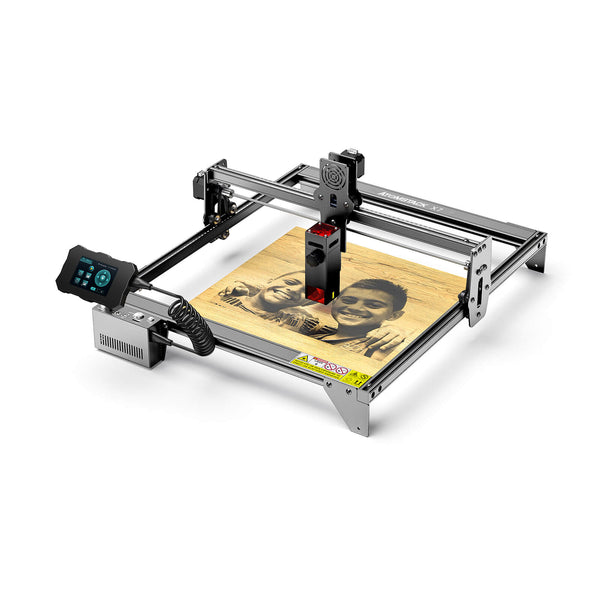

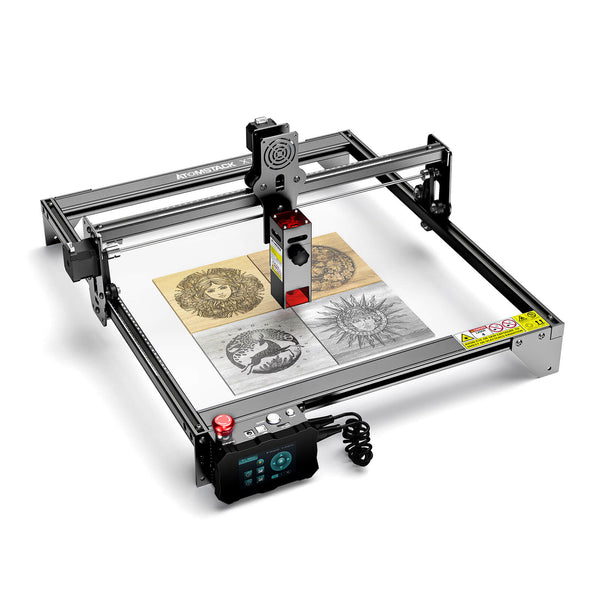

Item model number: ATOMSTACK X7
Working area: 410*400mm
Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Power: 40W
Laser Output Power: 5.5-6W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system; LightBurn, supports Windows/Mac OS/Linux
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE, FCC, RoHS, FDA, PSE
Equipment net weight: 3.426kg
Package weight: 5.072kg
Equipment size: 570*600*270mm
Packing size: 620*345*130mm
X7 LASER ENGRAVER PACKAGE:
1 × Mounting screw
1× Tool kit
4× Foot pad foam
3× Acrylic sheet
3 × Wood chips
10× Wire tie
1× Clean cloth
1× Card reader
1× TF card
1× Power adapter
1× Data line
1× Touch screen components
1× HDMI cable
1× Laser module
1× Cutting pad
1× X axis assembly
1× Y axis left profile
1× Y axis right profile
1× Profile on the base
1× Under the base profile
3× Foot bracket
Join in the Atomstack X7 Pro User Group:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
