Upgraded Atomstack A5 PRO+ 40W Laser Engraver
🎁 Local warehouse delivery, no customs duties
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days
Shipping Policy > -
International Express:
3-5 Working Days -
Liner Logistic:
7-10 Working Days
Note: Customs duties will be incurred if your order is shipped from China.
Main Features:
★ A5 PRO+ is an upgraded version of the star model A5 Pro. It has a better laser module and uses lens compression spot technology.

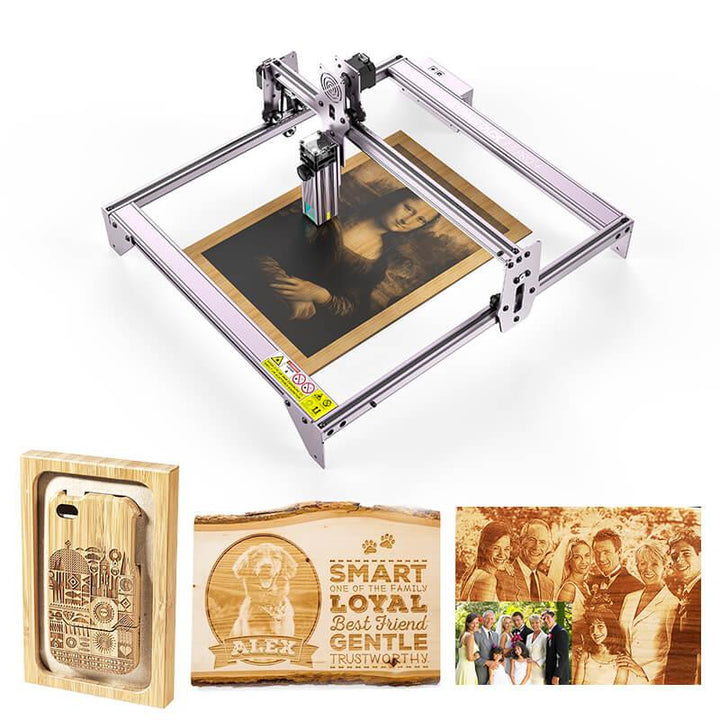

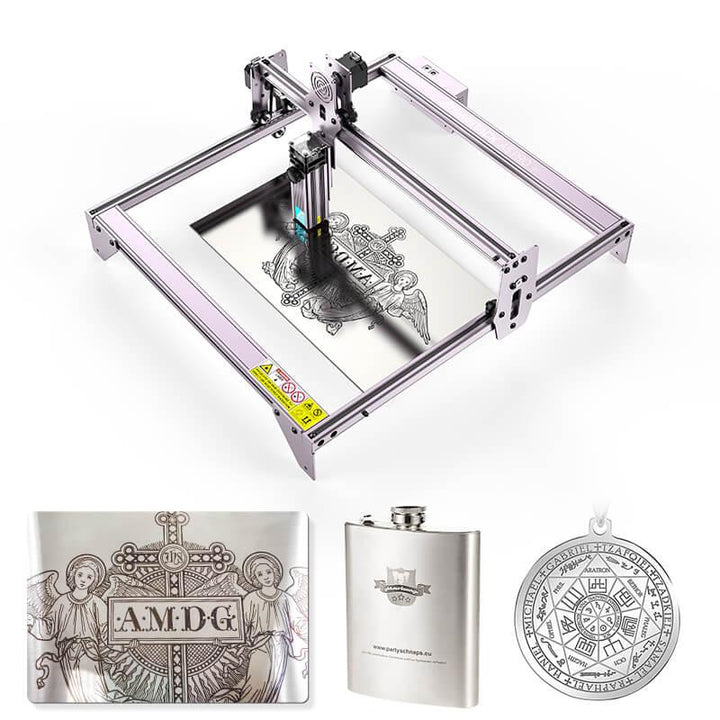

★ It can engrave on metal, ceramics, slate, glass, wood, etc., and cut wood, acrylic and other materials.
★ It can easily cut 10mm wooden boards and 8mm acrylic to achieve the effect of a 100W CO₂ laser engraving machine.
★ It supports an extension kit of 850*410mm to expand the working area.
Video
Basic Specifications:
| Model | A5 Pro+ |
| Electric Power | 40W |
| Laser Power | 5.5-6W |
| Working Area | 410*400mm |
| Data Transmission | USB |
| Wave Length | 0445 ± 5nm |
| Engraving Accuracy | 0.01mm |

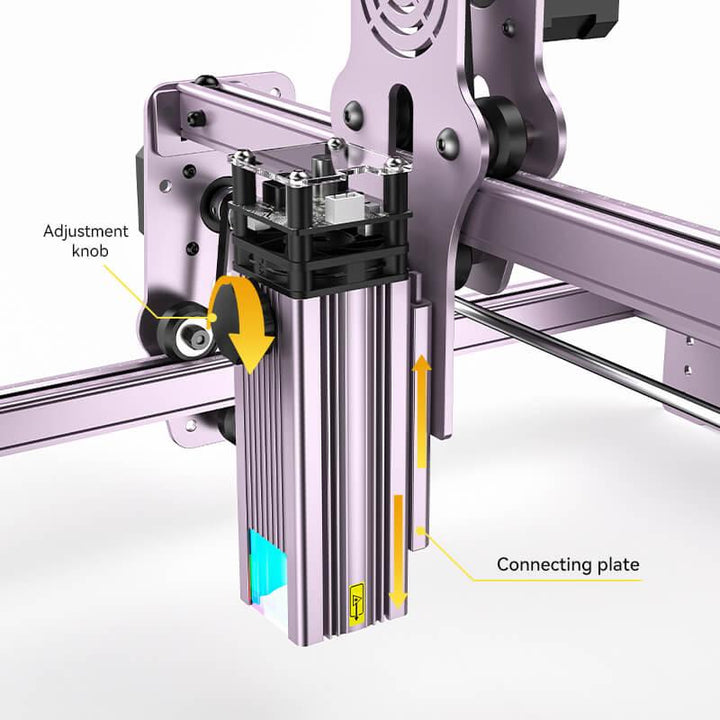

| Focusing Method | Fixed focus laser, no need to focus |
| Operating Software | LaserGRBL (free, supports Windows) or LightBurn (paid, supports Windows, Mac OS and Linux) |
| Input Format | NC, BMP, JPG, PNG, DXF, etc |
| Input Voltage | AC100-240V, 50/60Hz |
| Output Voltage | DC12V, 5A |

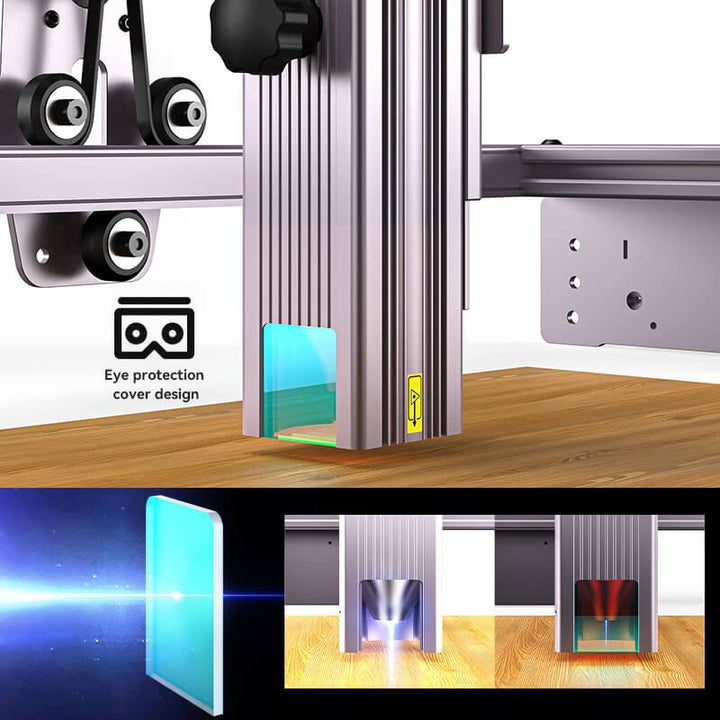

| Laser Protective Cover | Protect the user's eyes and prevent pets from grabbing the laser spot. |
| Cutting Objects | 1/5" wood and Acrylic ( The deepest cut can be 1/2", repeated cutting multiple times ), material, Cardboard, non-woven fabric, thin plastic board. |
| Carving Objects | Wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics |
| Equipment net weight | 3.426kg |
| Package weight | 5.072kg |
| Equipment size | 570*600*270mm |
| Packing size | 620*345*130mm |
| Certification | CE FCC RoHS FDA |
More details:
A5 Pro+ PACKAGE:
1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* support legs
1* Goggles
1* laser
1* 12V2A power adapter
1* Power switch line
1* USB cable
Step 1~5 installation package
1* M5 wrench
10* rolled belt
3* small wood
1* focal length film
1* M3 wrench
1* marker
1* brush
3* small acrylic
1* Stainless steel backing plate for cutting
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
