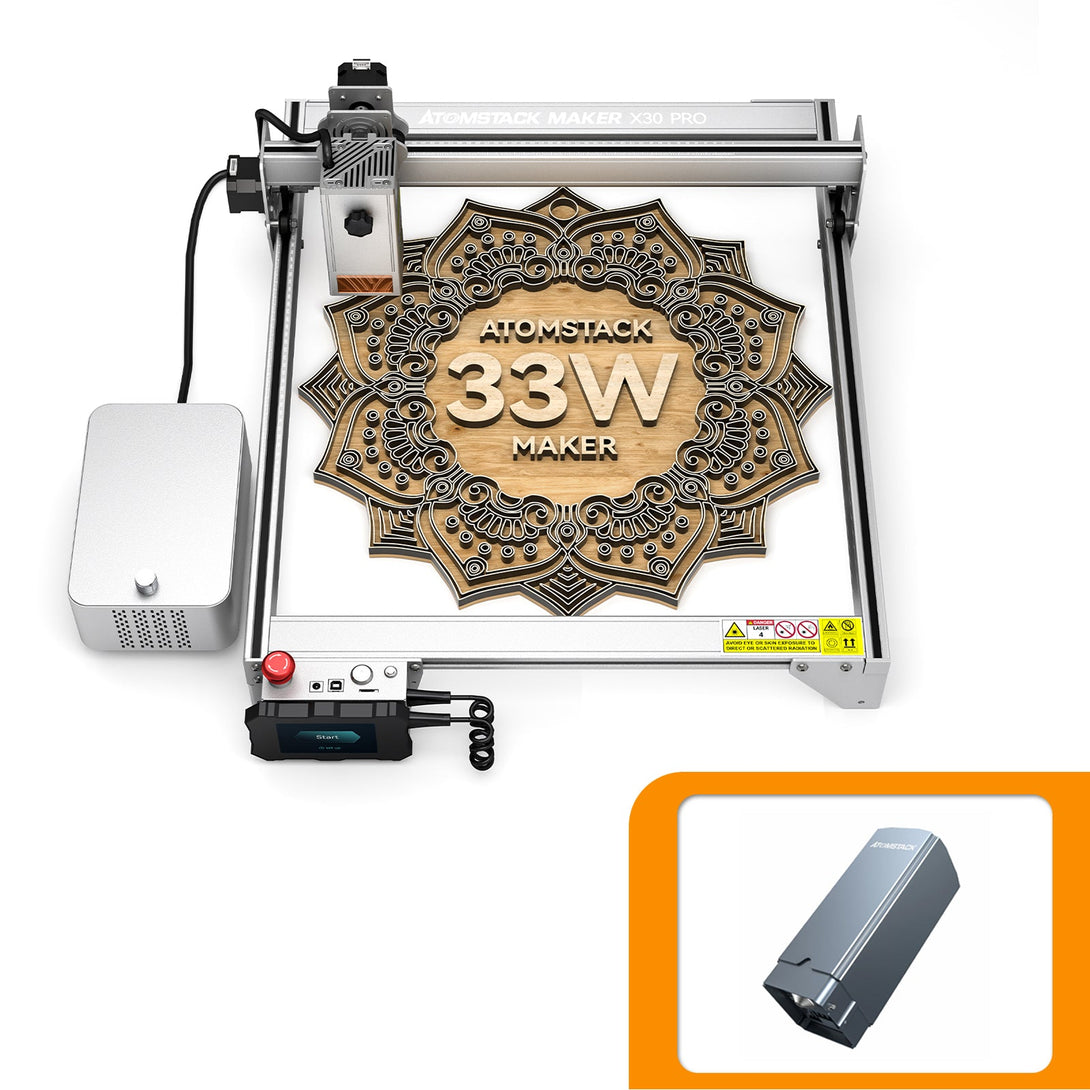

This product link is for a combination of SKUs: Atomstack X30 Pro 160W Laser Engraving Machine + R30 Infrared Laser Module 1064nm Laser
1. Ultra-high power : As the world’s first 33W laser output power laser engraver, Atomstack X30 Pro with the latest 6*6W laser coupling technology can cut 18-20 mm paulownia board and 10mm black acrylic board in one pass and even can cut 0.1mm stainless steel sheet. The high density laser can cut 25mm wood board and 30mm black acylic board easily through multiple time works. It can also directly engrave on mirror stainless steel, ceramic, opaque glass, etc.
2. High working efficiency: Compared with a 10W laser engraving machine, the cutting speed of X30 Pro has been increased by 200%, and the cutting depth has been increased by 150%. Compared with Atomstack X20 Pro, the cutting speed has been improved by 50% and the cutting depth has been increased by 25%.
3. Upgraded F30 Pro air assist kit: Equipped with F30 Pro, the cutting ability of X30 Pro is greatly improved, and the cutting accuracy and cutting quality are also greatly optimized.
4. Newly updated 32-bit mainboard: Atomstack self-developed 32-bit motherboard, with 256-bit color levels, make the engraving result finer and the contrast higher. Your engraving will not just be black.
5. Brand new laser module: Atomstack X30 Pro laser head has a built-in focusing unit as well as a built-in air assist system, no more messy wires.
6. Atomstack mobile app: Atomstack app is now available in Android store and Apple store (you can also download the app via scanning the QR code on the manual). Mini size and multi-function will bring you a fresh control experience.
7. New filter panoramic eye protection design: The panoramic filtered glass cover filters 97% of UV light and protects your eyes well. The user and people around can watching laser engraving without goggles.
8. Firm and easy-to-install structure: The all-aluminum anodized structure design makes the machine strong and strudy and improves the engraving precision. The installation can be completed within 20-30 minuts.
9. Axes with precise scale lines: There are precise scale lines on X-axis and Y-axis for quick and easy length measurement. 400*400mm engraving area meets your various engraving needs.
10. Latest laser coupling technology: Ultra-fine laser spot size is reduced to 0.08*0.1mm.
11. Integral screw rod: The machine uses integral screw rod instead of combined shaft coupling. Integrated stepping motor and screw rod makes the movement of the laser module more precise and the coupling more durable.
12. Adjustment knob: With the adjustment knob, it is quicker and eaiser to adjust the height of the laser module.
13. Offline engraving supported: Atomstack X30 Pro is equipped with a terminal control panel which supports offline engraving. You can perform engraving when there is no computer available.
14. The laser sintering temperature reaches as high as 3,000℃.
15. Emergency stop button: It can stop the running machine at any time when there is an unexpected situation.
16. Limit switch: Yes.
17. Reset switch: Yes.
18. Expandable working area: With modular design of the fuselage mechanism, you can get 400*850mm super large engraving size by replacing the frame components.
|Machine Model||ATOMSTACK X30 PRO|
|Engraving Material||wood, bamboo, cardboard, plastic, leather, PCB, aluminum oxide, non-reflective plated and painted metal, 304 mirror stainless steel, glass, ceramic, cotton cloth, slate|
|Cutting Material||cardboard, nonwoven fabric, wood board, acylic, some thin plastic sheets, sponge|
|Focusing Method||Fixed-focus laser, no need to focus|
|Laser Protective Cover||Protect the user’s eyes and prevent pets from grabbing the laser spot|
|Compatible Software||LaserGRBL (Windows) and LightBurn (Windows & Mac)|
|Supported Files||NC, BMP, JPG, PNNG, DXF|
|Data Transfer Method||USB|
|Input Voltage||100-240V AC, 50/60HZ|
|Output Voltage||DC12V, 5A|
|Certification||CE, FCC, RoHS, FDA, PSE
1. Be sure to install the laser protective cover when using the laser engraver. If not, please wear goggles.
2. Do not touch the laser beam with your hands.
3. Please avoid strong impact on the machine.
4. Children under 14 are not allowed to use this product, and children over 14 need adult supervision.
5. Do not apply the laser engraving machine to any specular objects as this may hurt the user or burn the laser module.
Atomstack X30 Pro PACKING LIST：
Focus adjusting sheet*1
Touch screen component*1
X axis component*1
Y axis left profile*1
Y axis right profile*1
