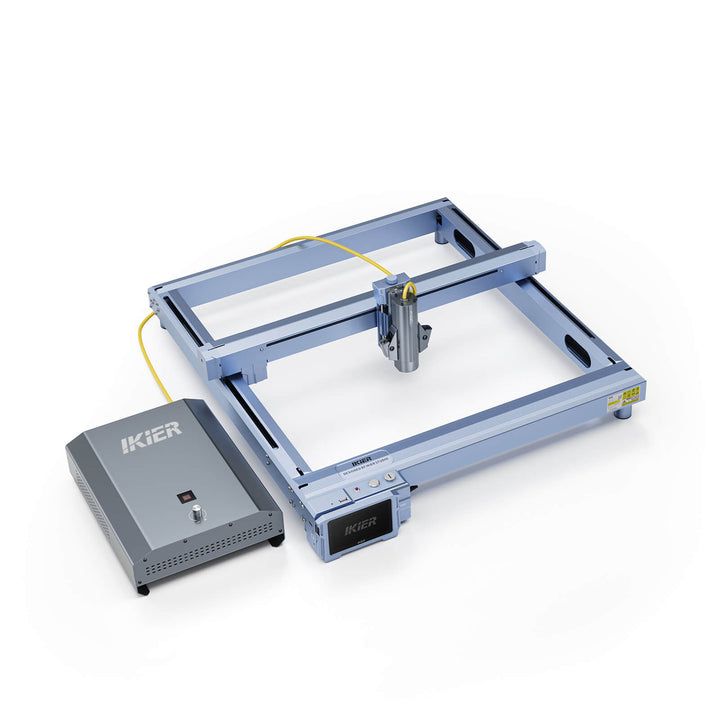

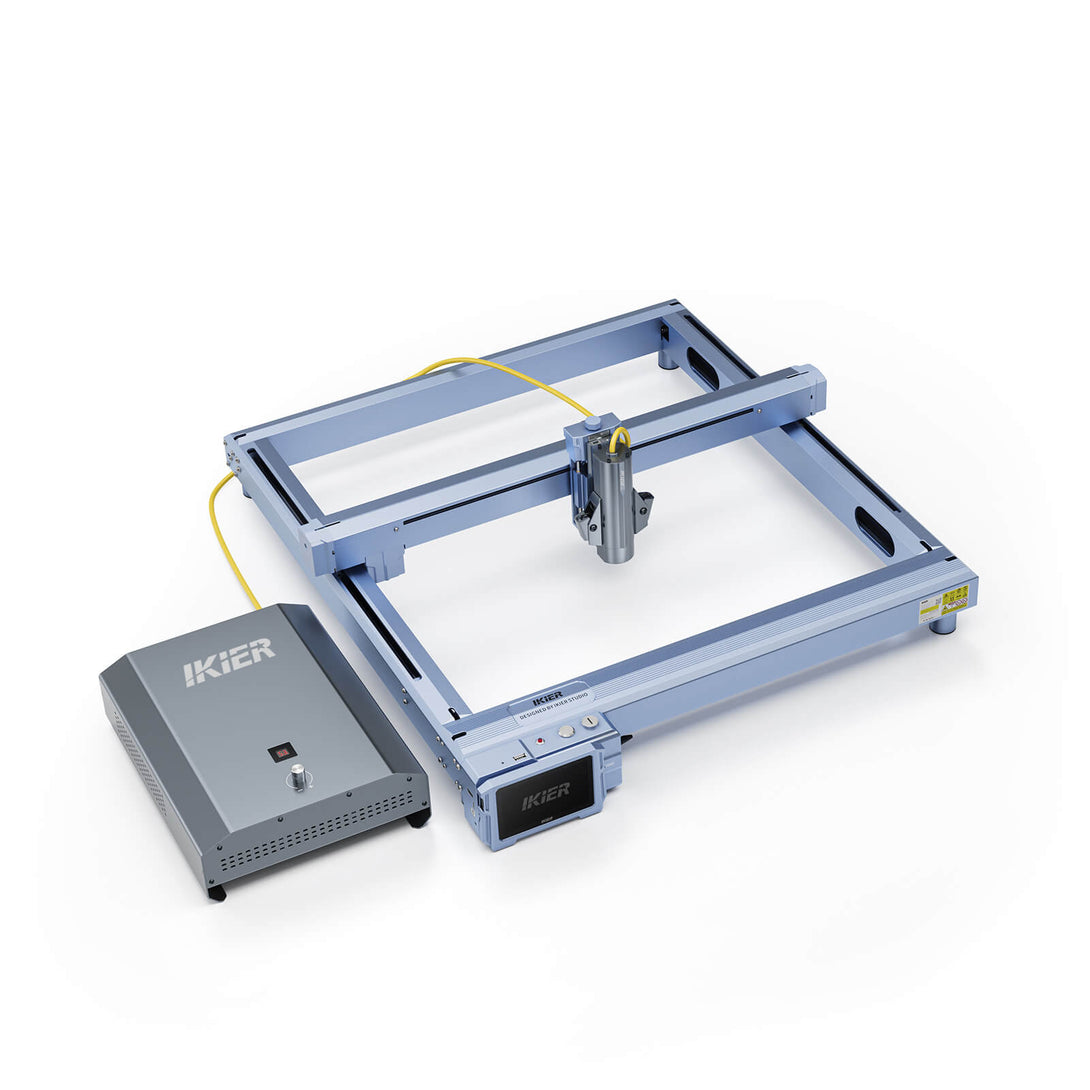

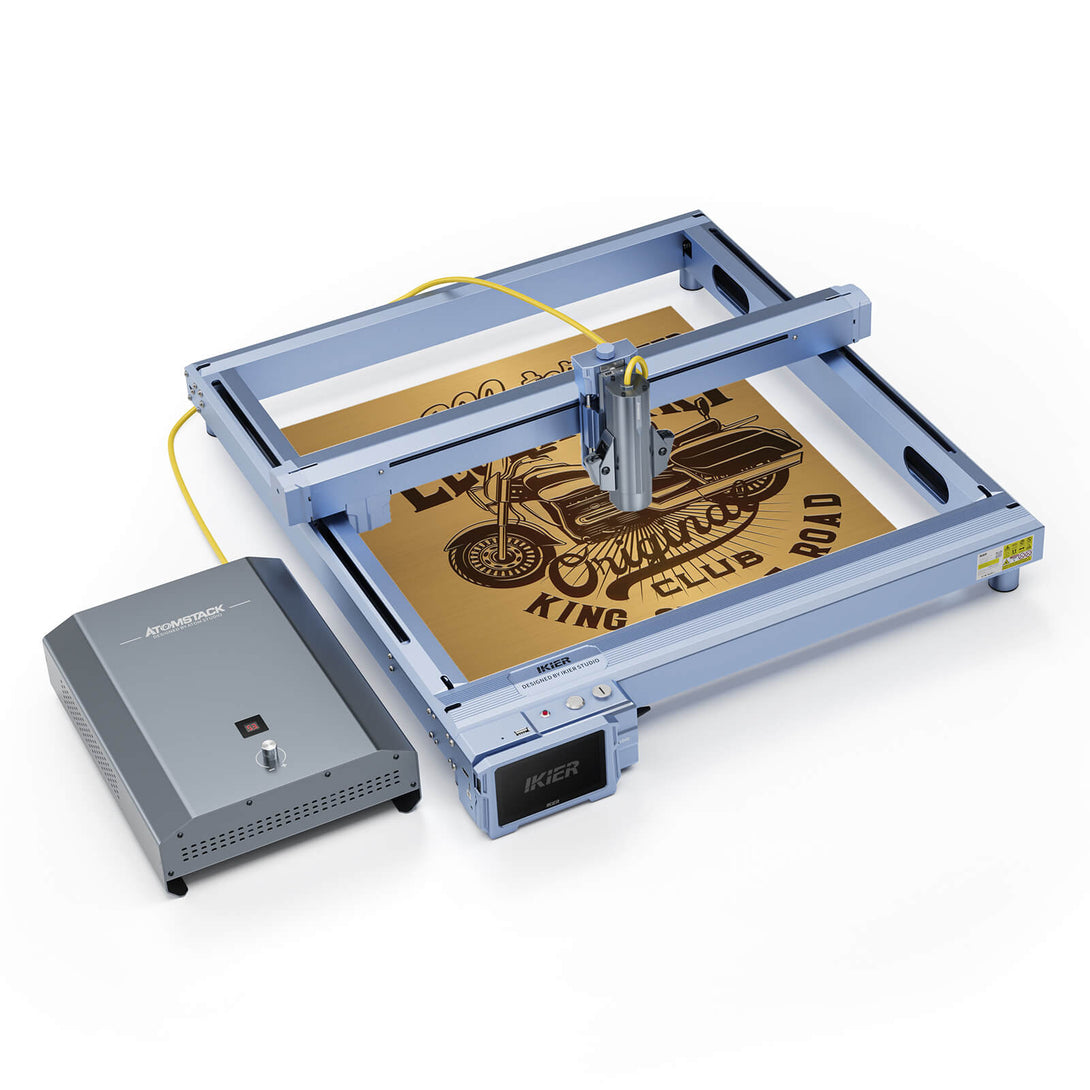

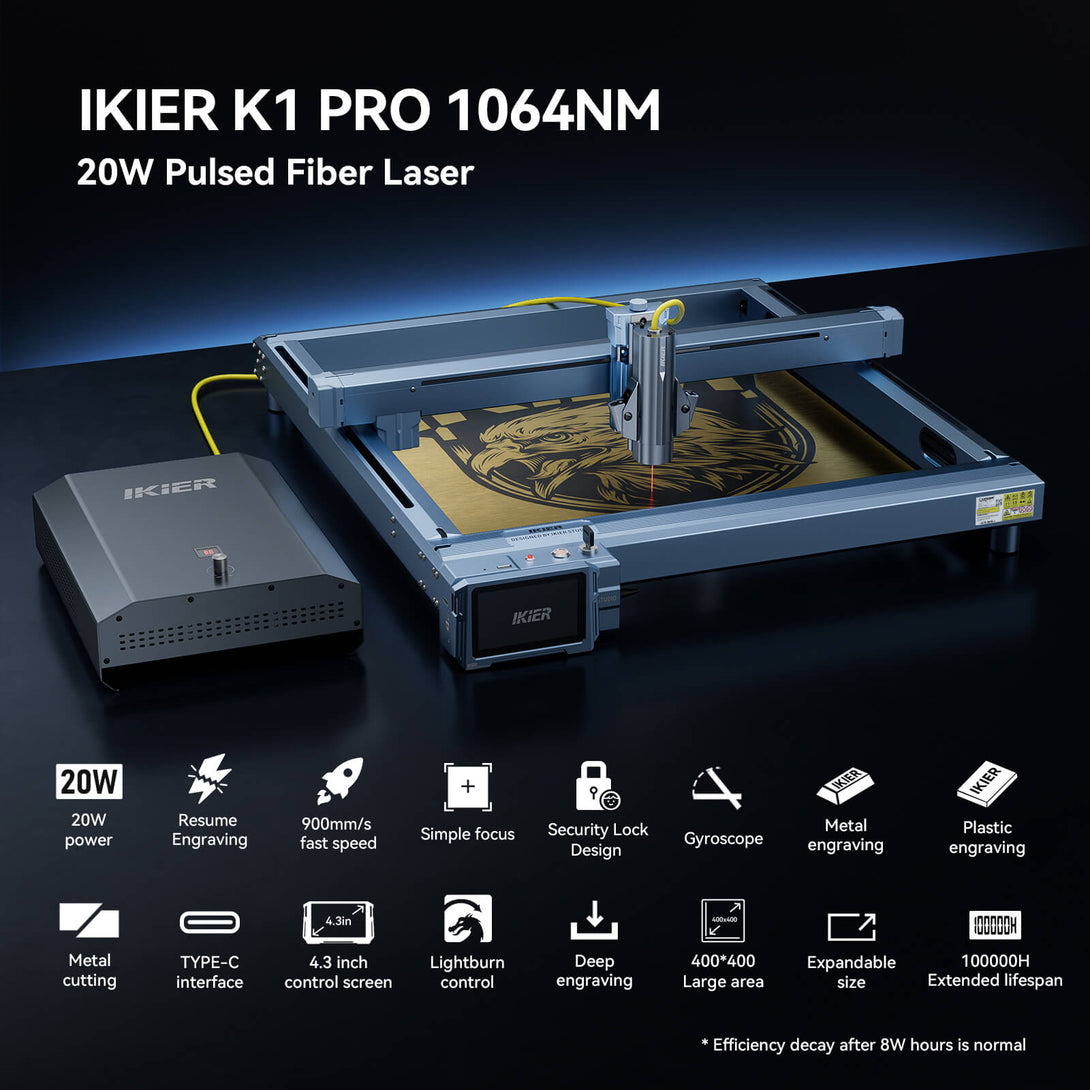

iKier K1 Pro 1064nm 20W Fiber Laser Marking & Engraving Machine

The World's First Professional 1064nm 20W Fiber Frame Type Laser Engraving Machine

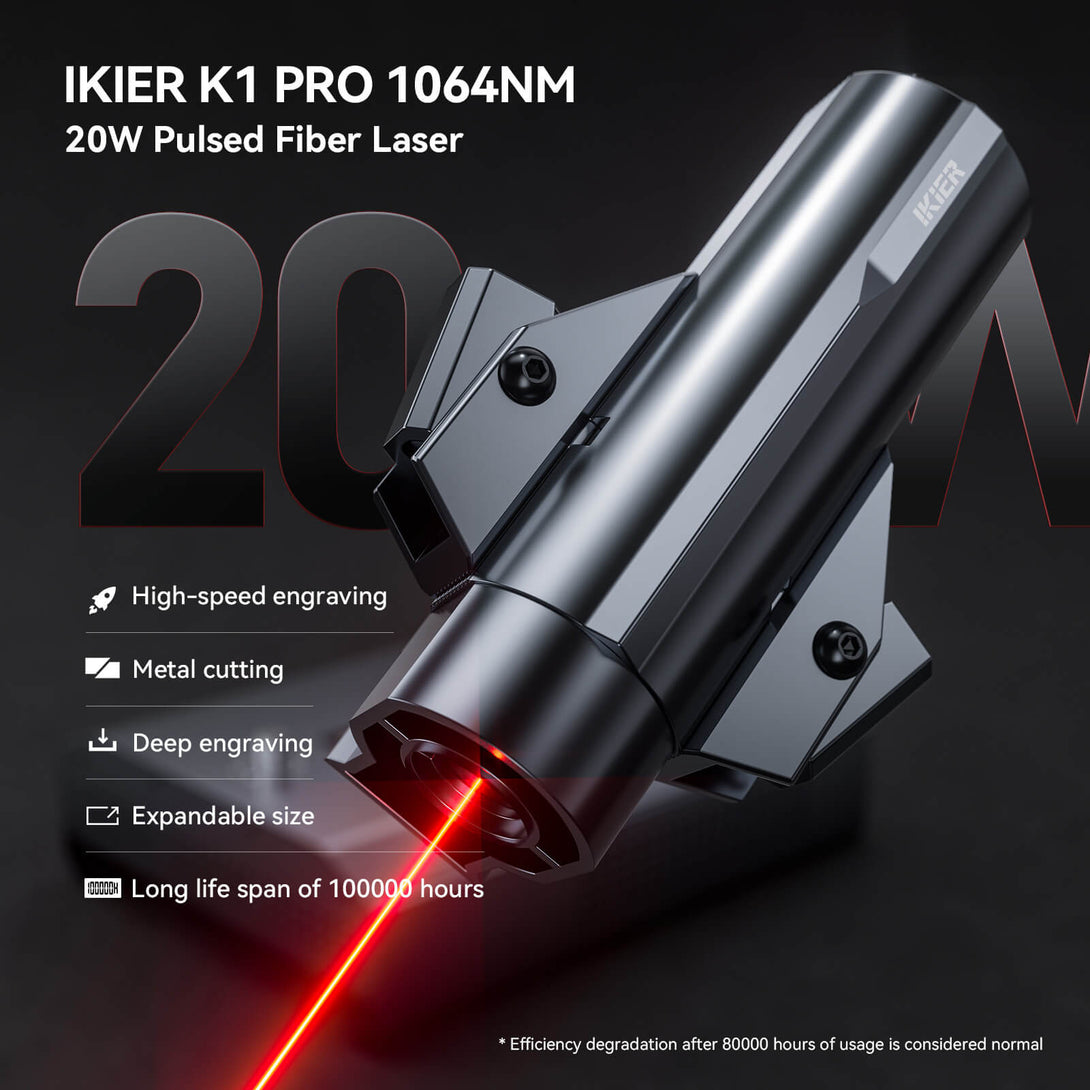

20W Fiber Laser Power: The world's first 1064nm wavelength infrared Fiber laser engraving machine with optical power up to 20W;

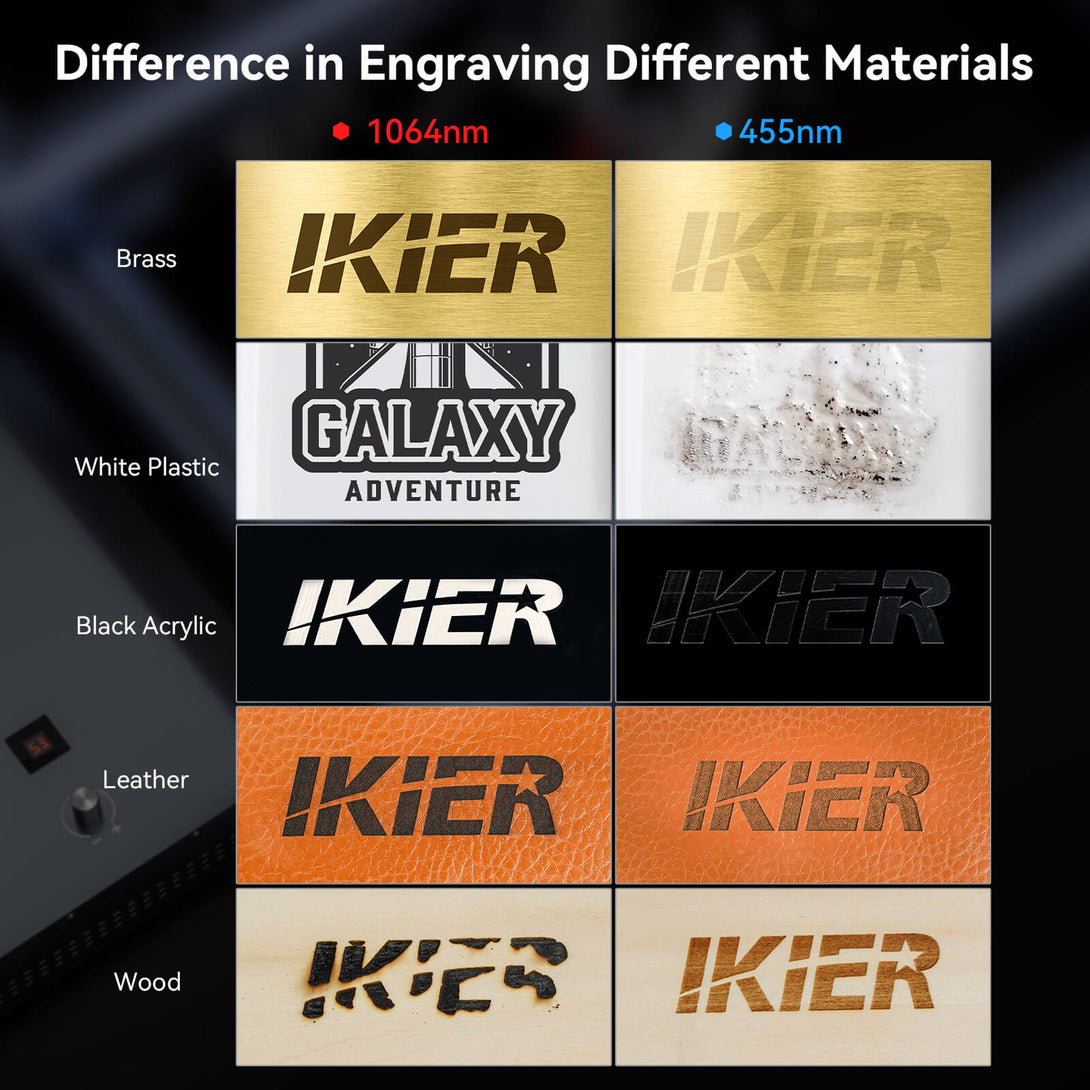

Multi-Material Application: IKIER 20W infrared laser engraving machine, can be applied to all daily metal (copper, iron, aluminum, zinc, silver, etc.) and plastic high-speed fine engraving, but also in black acrylic, leather, ceramics and rock engraving;

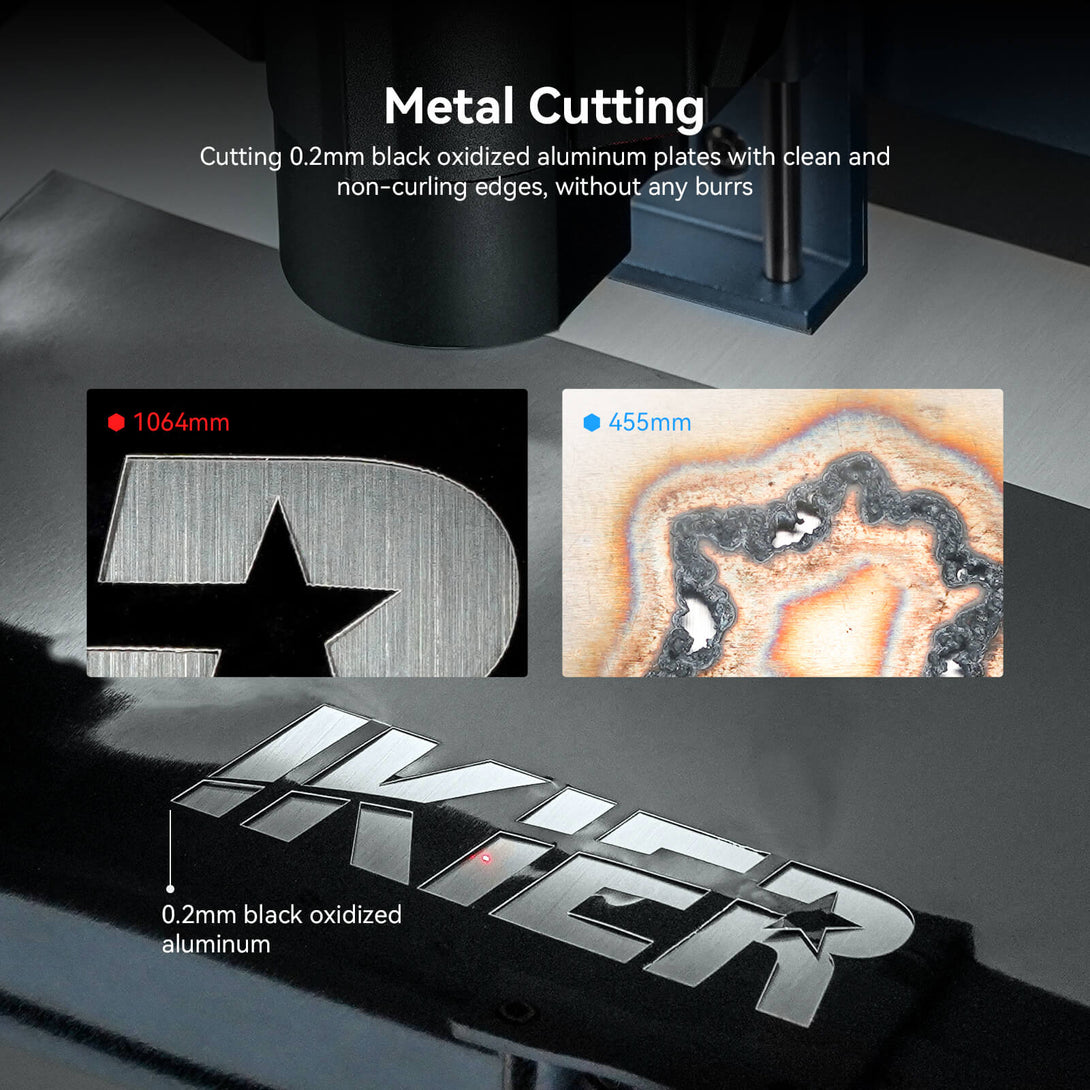

Metal Cutting: With 20W Fiber Laser power and 0.03*0.06 ultra-fine spot, iKier K1 Pro 1064nm can easily cut 0.2mm aluminum business cards by one-pass;

Resume Engraving: In the face of accidental interruption of the work, IKIER self-developed intelligent motherboard can realize the power failure to continue carving function, continue to work without wasting materials;

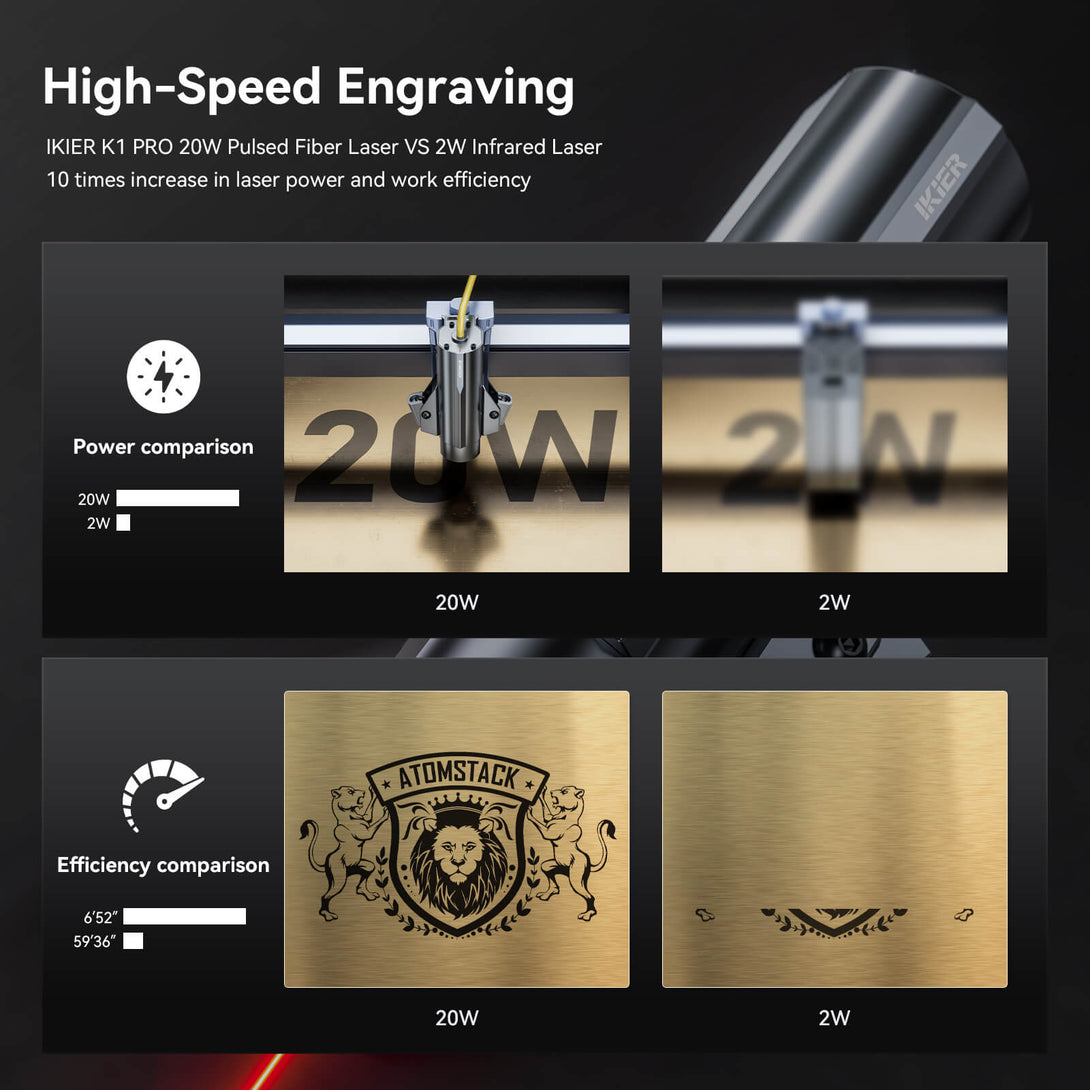

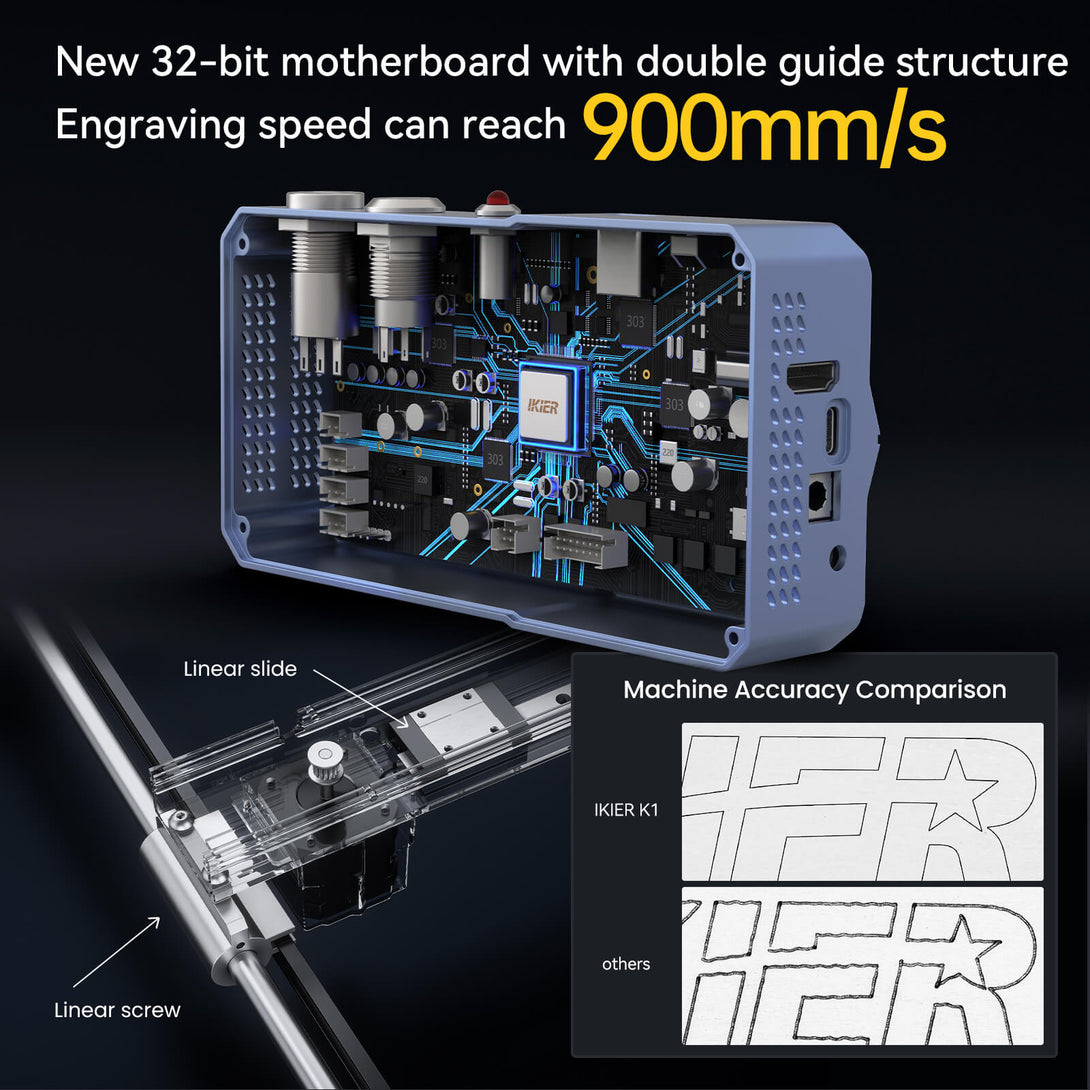

Ultra-Fast Working Speed: the machine adopts the movement structure of optical axis + linear guide, more can realize 900mm/s ultra-high-speed high-precision operation, and the engraving accuracy can reach 0.01mm under the limit speed, which greatly improves the working efficiency;

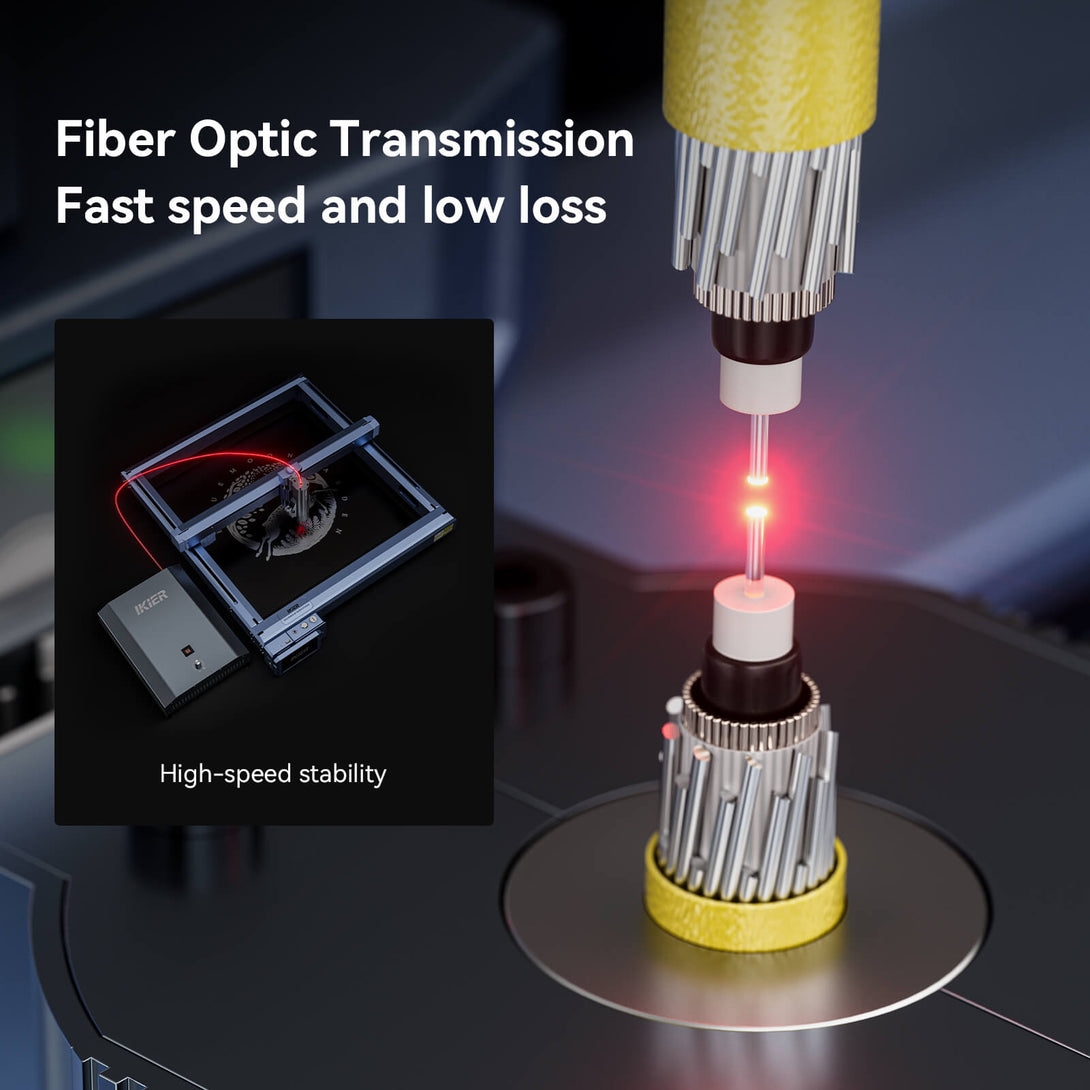

Fiber-Optic Conduction: The laser energy transmission adopts the fiber-optic conduction method, which can greatly improve the energy transmission efficiency and reduce the energy transmission loss;

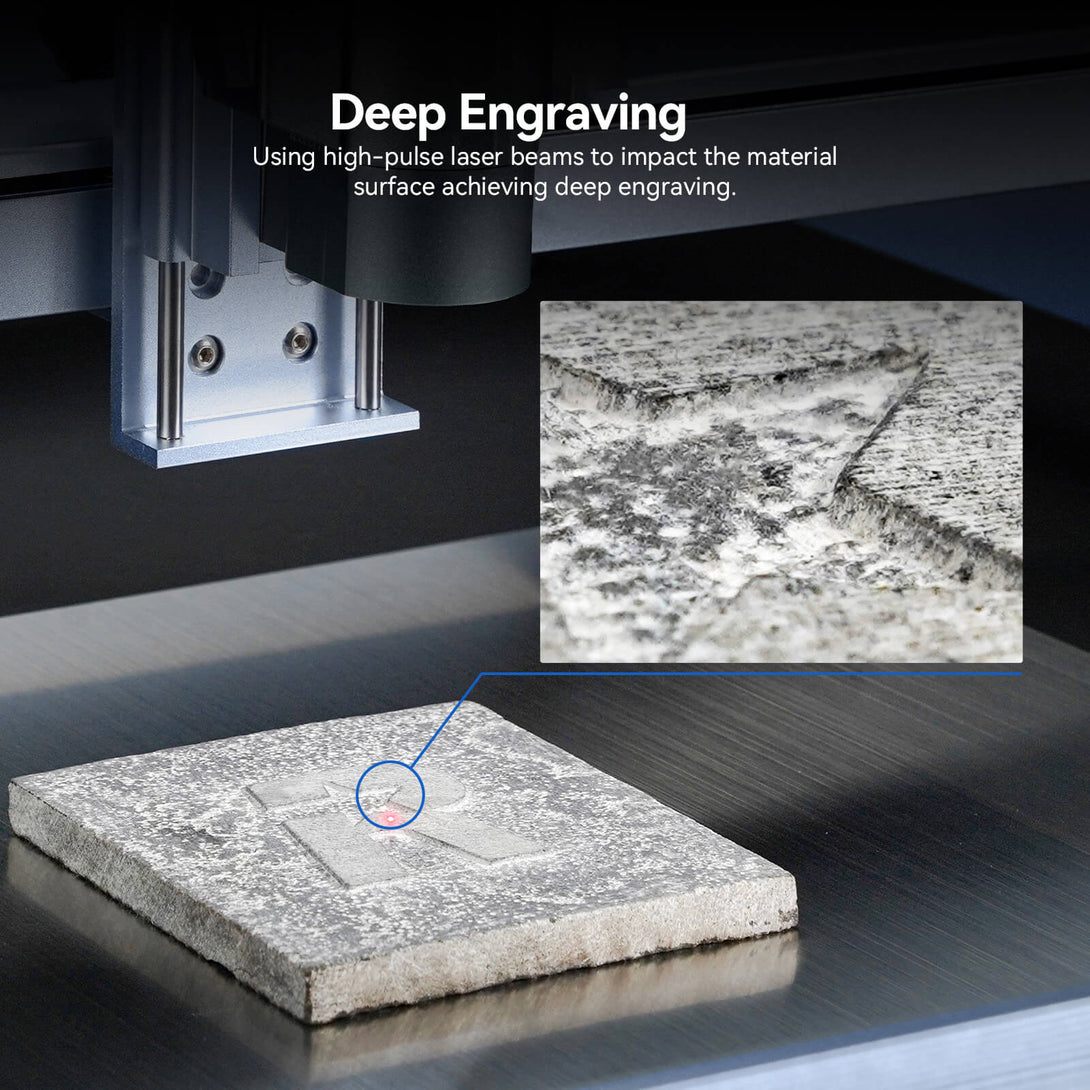

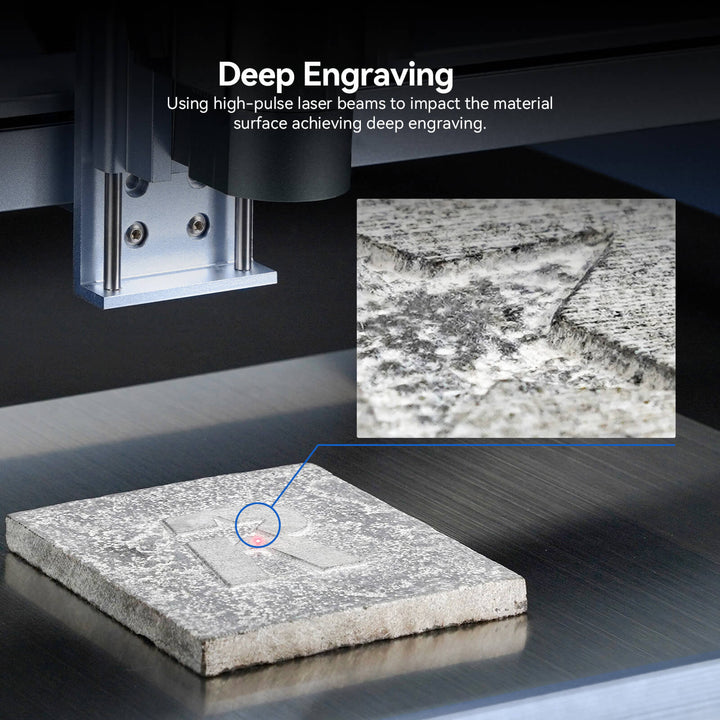

Relief Engraving: The 1064nm infrared laser is well suited for deep engraving on neat slate planes, demonstrating a relief effect;

New Robust Structure: the machine adopts the movement structure of optical axis + linear guide, modular design, 15 minutes quick installation;

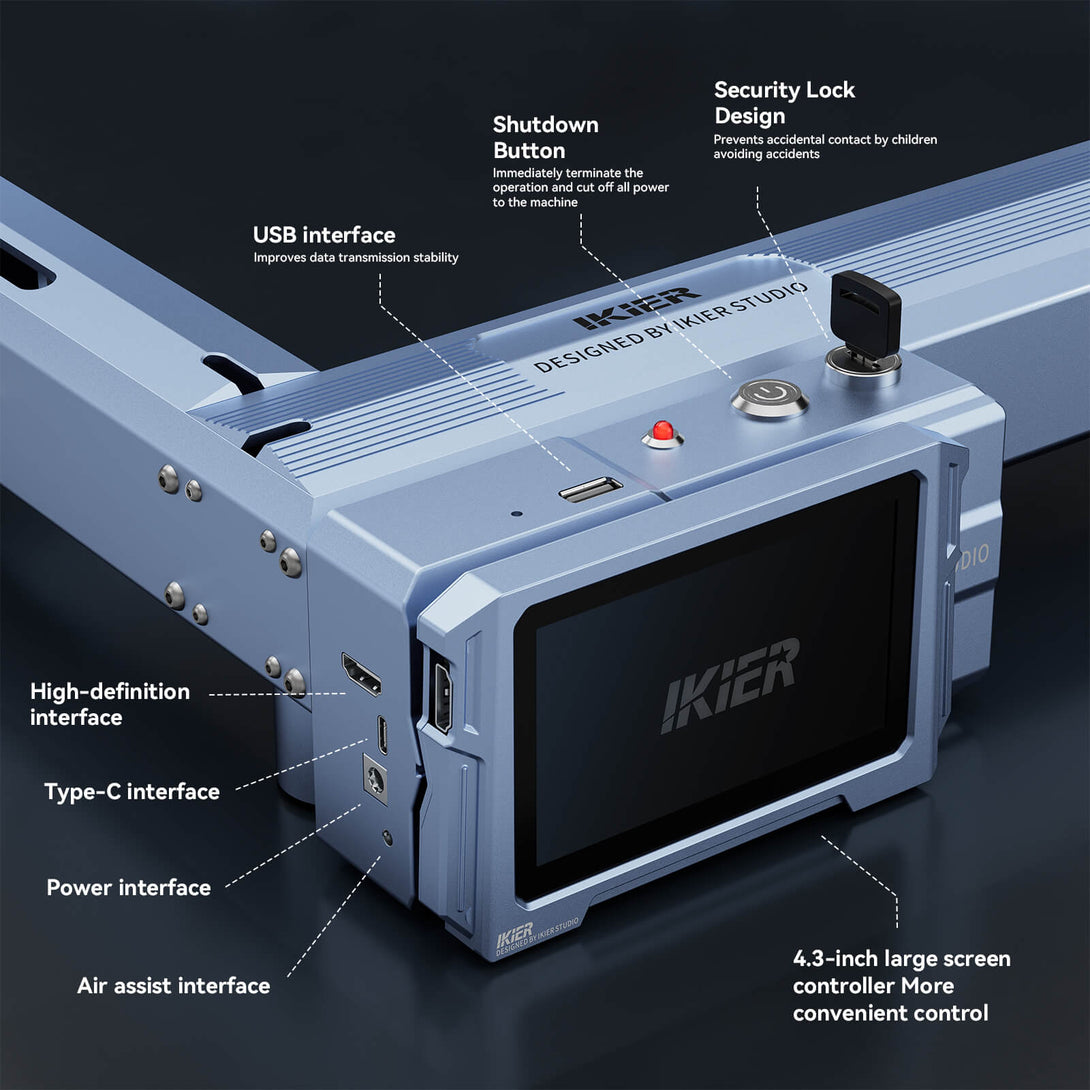

4.3-Inch Intelligent Offline Controller: equipped with 4.3-inch LCD touch screen intelligent controller, with more control functions, allowing the machine to get rid of PC limitations and realize offline work;

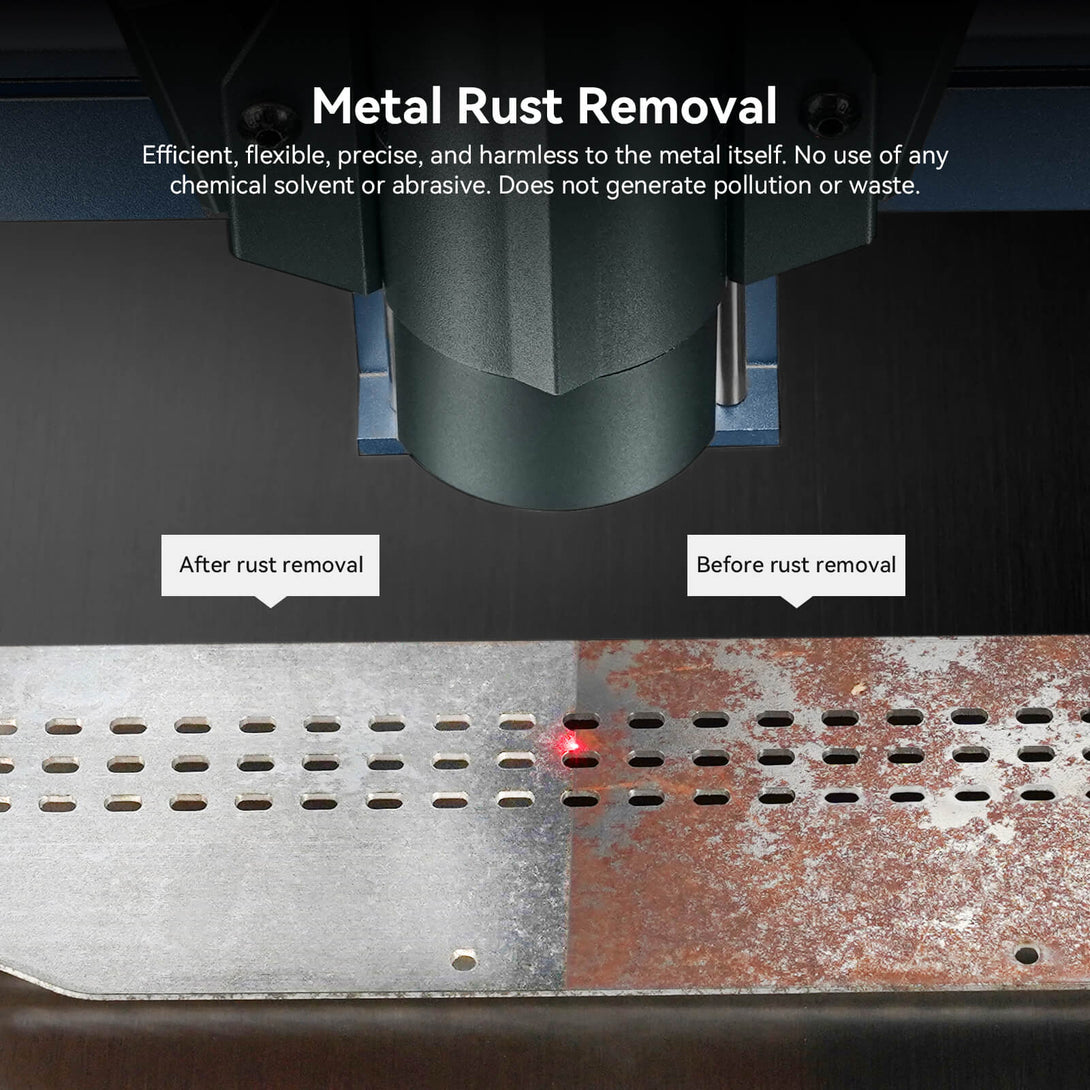

Rust Removal: IKIER K1 PRO 1064nm laser, very suitable for removing the surface rust layer of metal, can quickly laser rust removal on metal;

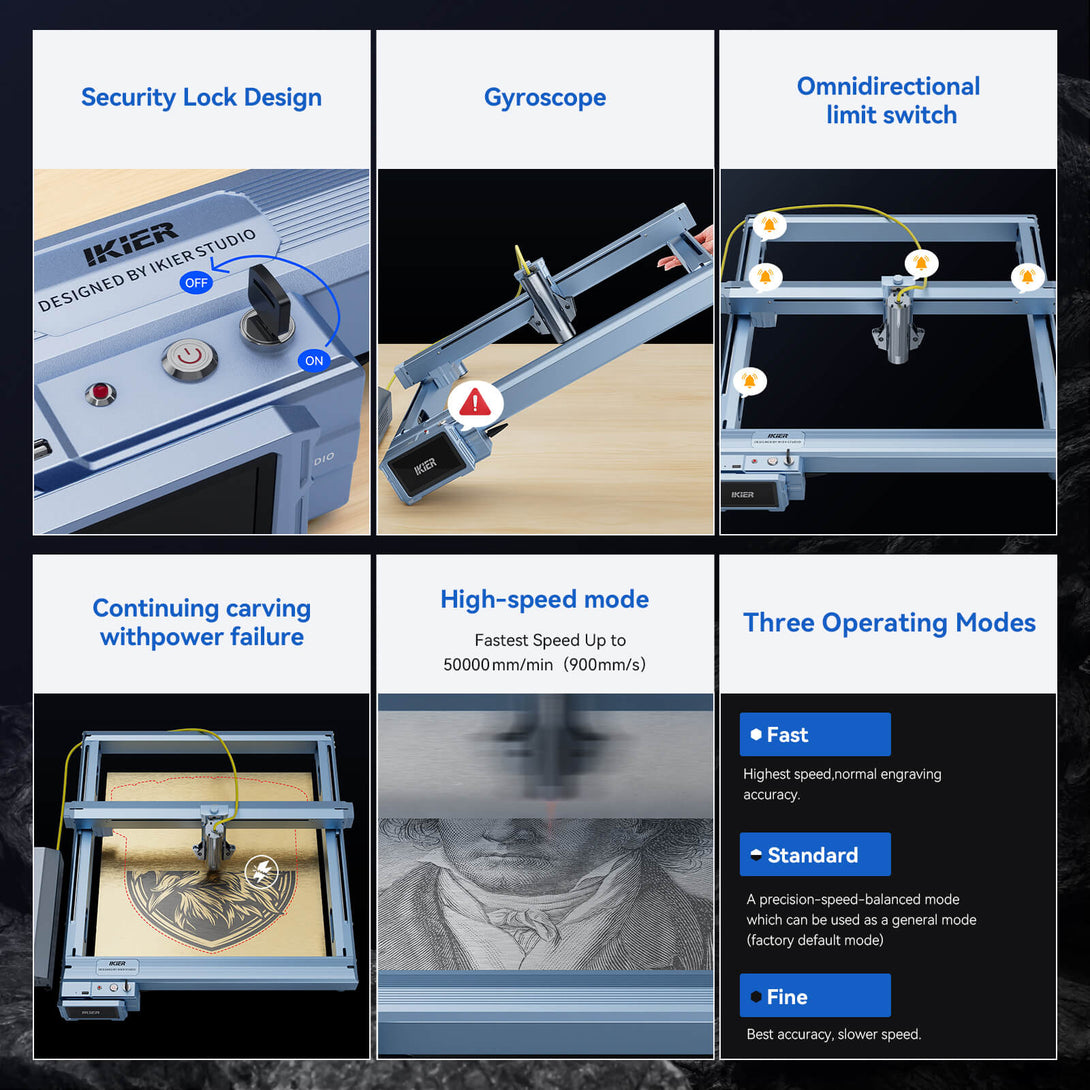

Safety Protection: IKIER always care about the safety of your work, the machine is equipped with a physical switch key, there are sensitive gyroscope displacement detection and limit and other different safety protection devices;

Parameters:
Product Model: IKIER K1 Pro 1064nm
Engraving size: 410*410mm
Laser output optical power: 20W
Maximum speed of high quality engraving: 900mm/s (54000mm/min)

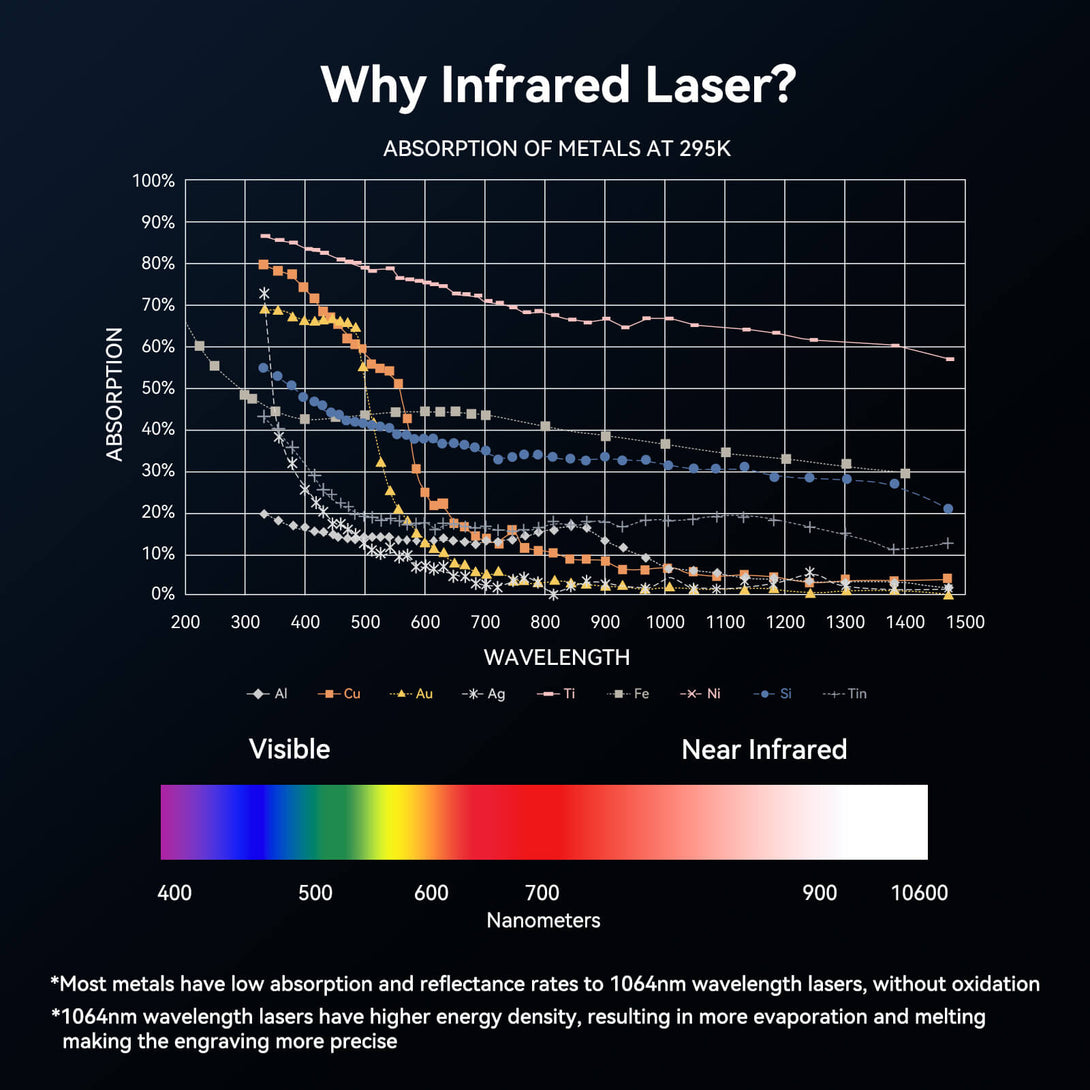

Laser wavelength: 1064nm
Engraving accuracy: 0.01mm
Repeatability: 0.1mm

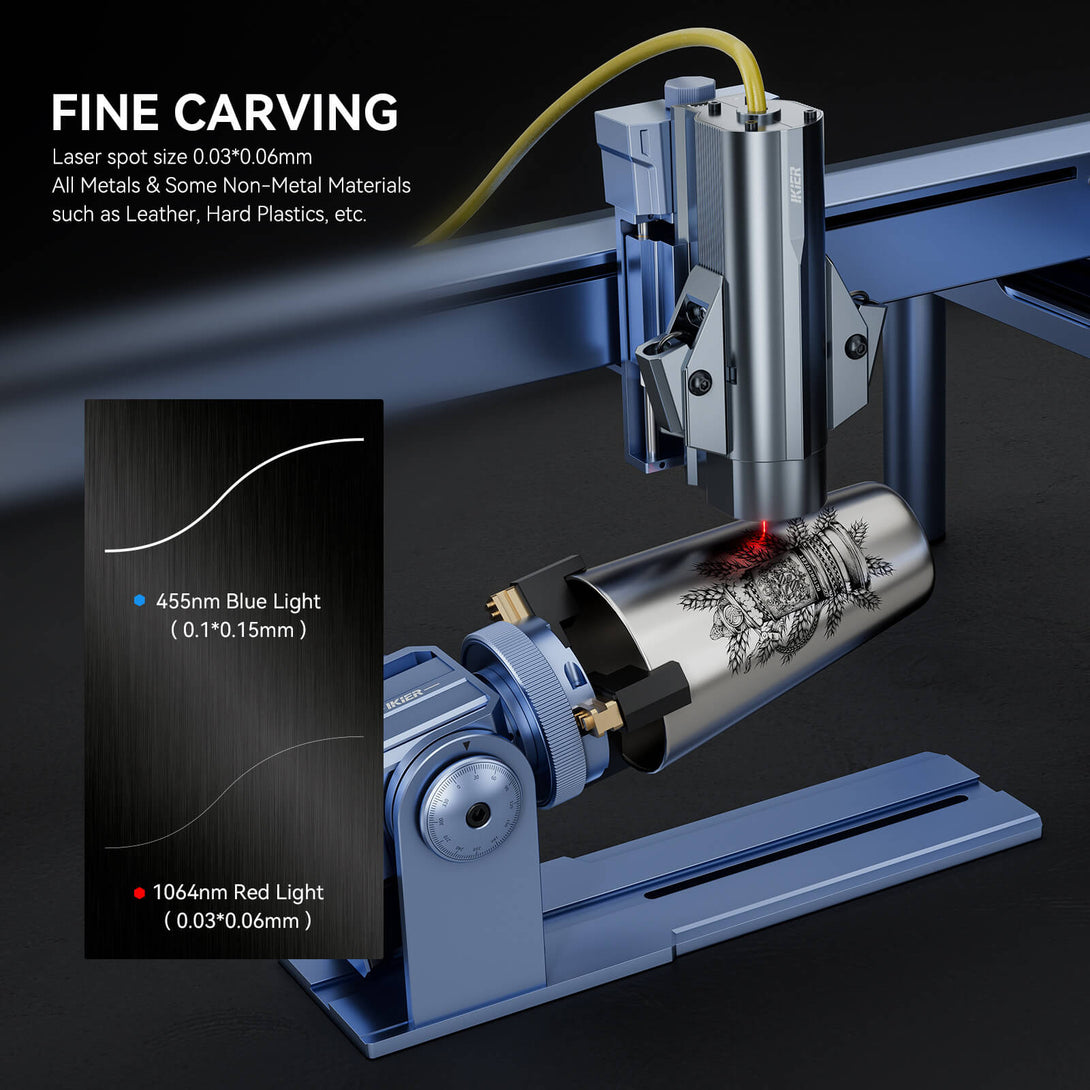

Spot size: 0.03*0.06mm
Limit switches: 3 (1 for X-axis, 2 for Y-axis)
Data transmission mode: Typ-C transmission of computer data, USB interface transmission of offline data, HDMI interface transmission of controller data
Focusing mode: manual adjustment
Controller size: 4.3 inches
Controller function: connecting WiFi, power outage renewal carving, anti-tipping, automatic sinking cutting, parameter setting, work progress viewing
Engravable materials: PCB board, acrylic, aluminum oxide, plating layer and lacquer layer metal, 304 mirror stainless steel, glass, ceramics, cotton, slate, leather;
Cuttable materials: thin stainless steel sheet, thin aluminum sheet;

Operating software: LightBurn
Operating system: macOS; Win XP / Win 7 / Win 8 / Win 10 / Win 11
APP Name: IKIER
Supported file formats NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: 24V 7.5A
Certification: CE FCC RoHS FDA PSE
